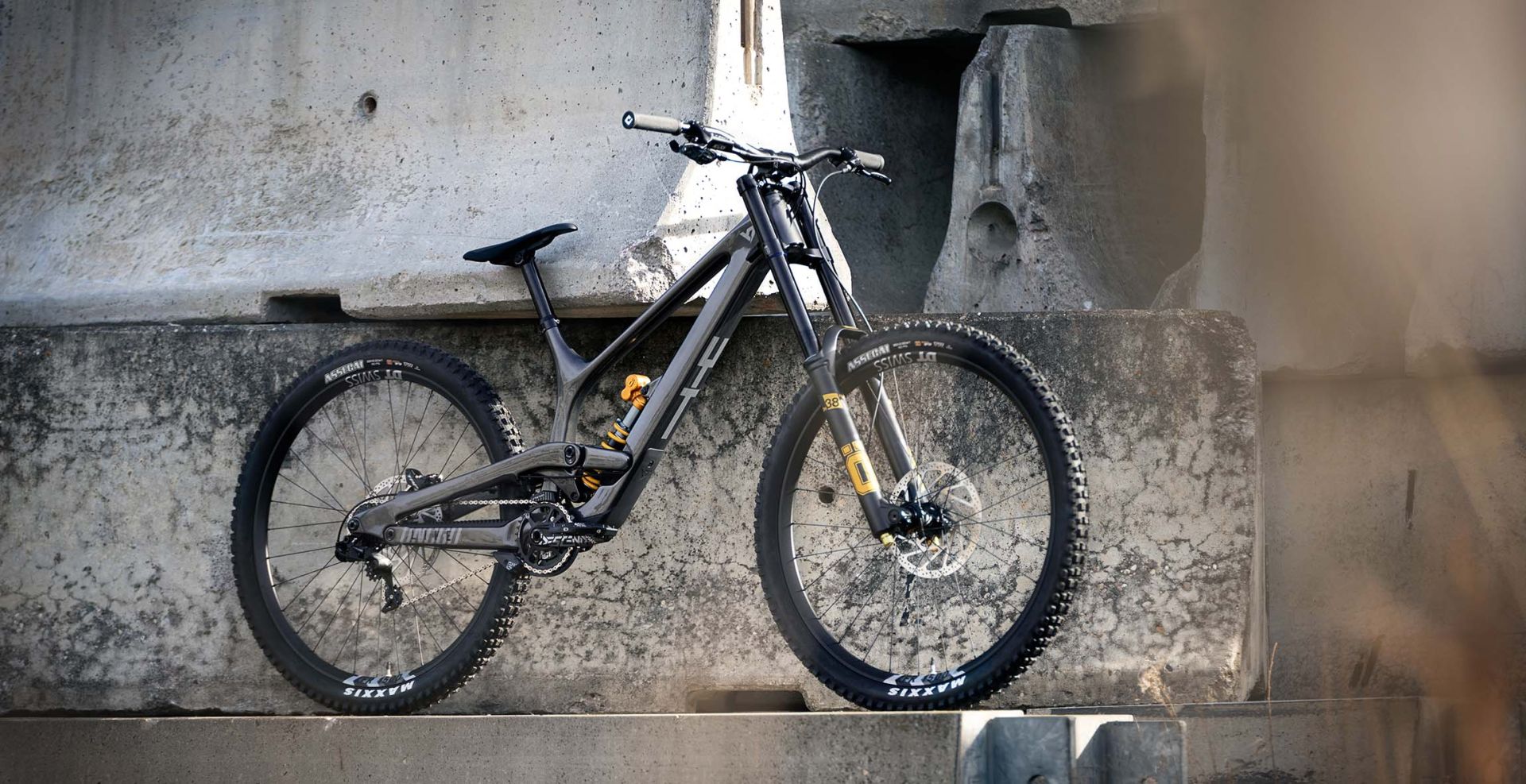

Tues Core 3

The TUES CORE 3 is the latest evolution of our pedigree race rig: A platform rooted in history as one of the most competitive on the scene, with a trophy cabinet to prove it. Here, we've taken everything we've learned about downhill and jammed it into this beast, and it's ready to fill your veins with pure, unfiltered stoke. The CORE 3 brings everything you need on your steps to the podium, including our highest-grade Ultra Modulus carbon fiber, adjustable geometry, and MX/29" FLIP LINK adaptability. There are no weak links in the spec either: Dependable DT Swiss wheels are ready to take the hits, while the race-focused TRP brakes and a premium Öhlins suspension package bring the control you need to smoke your times on the track – and your mates in the bikepark. Let the racing begin.

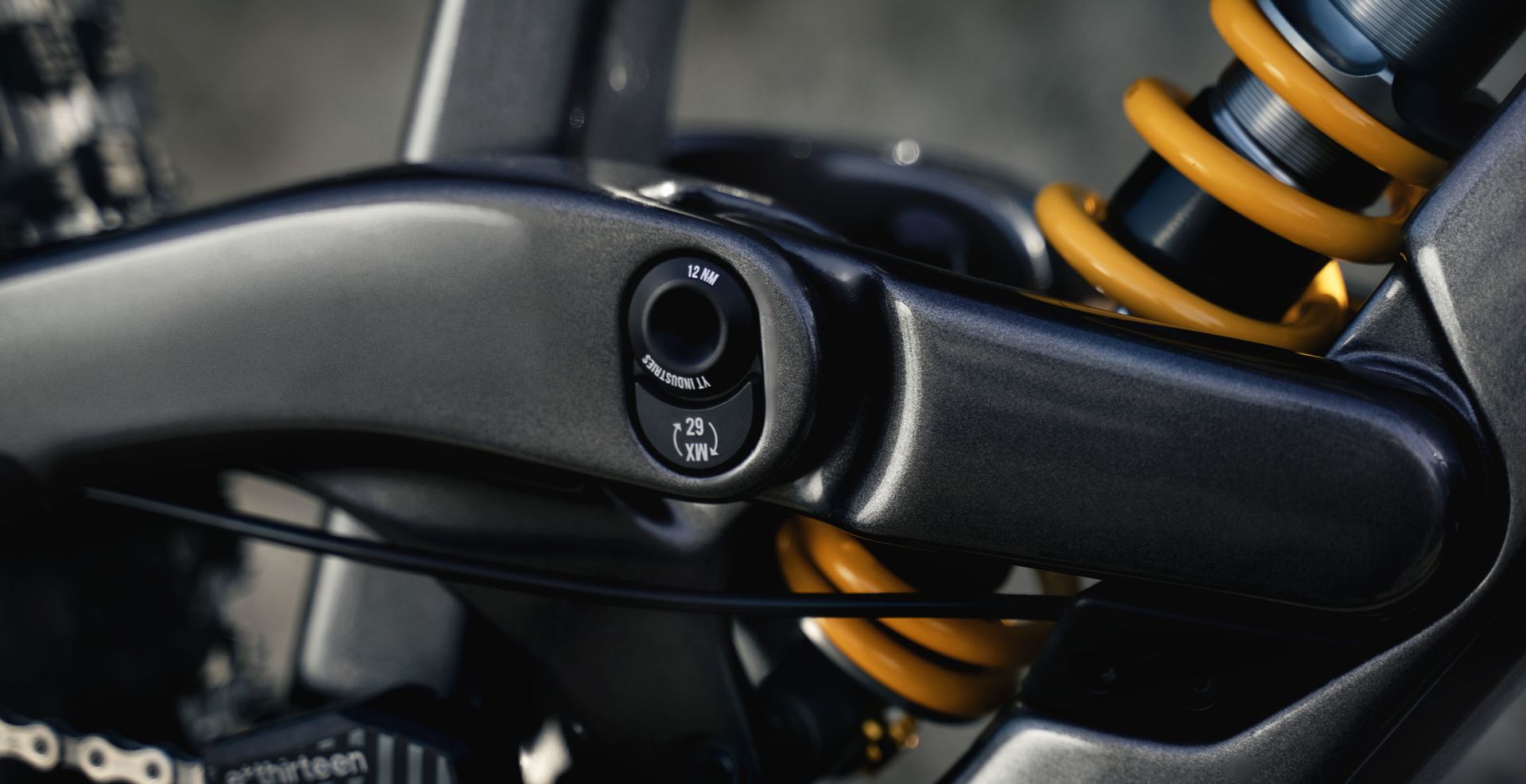

MX or 29" – with FLIP LINK, you choose both. The new TUES is both MX and 29" capable without the need for additional frame parts.

Specifications

Frame

Frame Size S, ML, XL, XXL
Color Steel Grey

Wheels

Wheels DT SWISS FR 1500

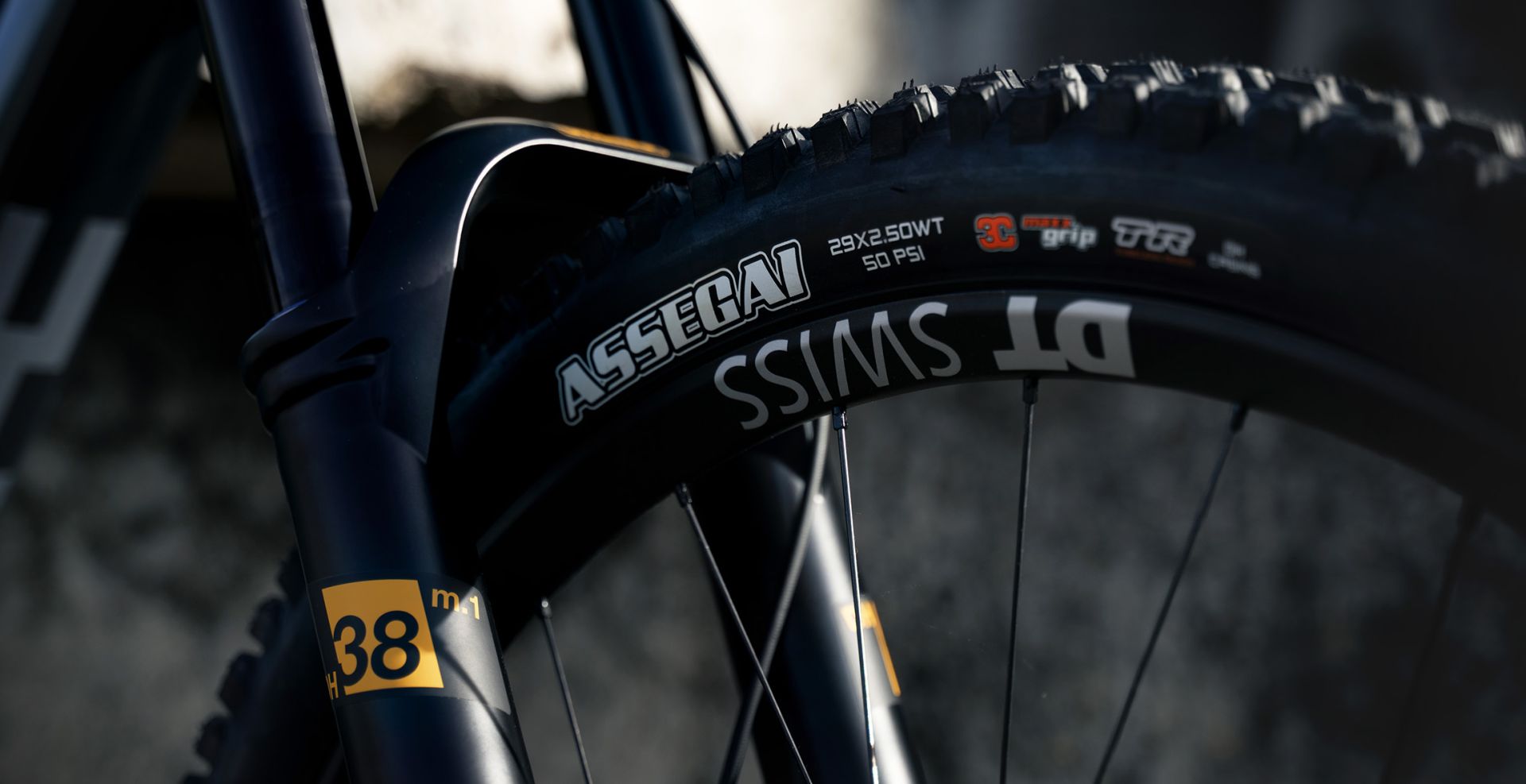

Tires MAXXIS ASSEGAI DH

Suspension

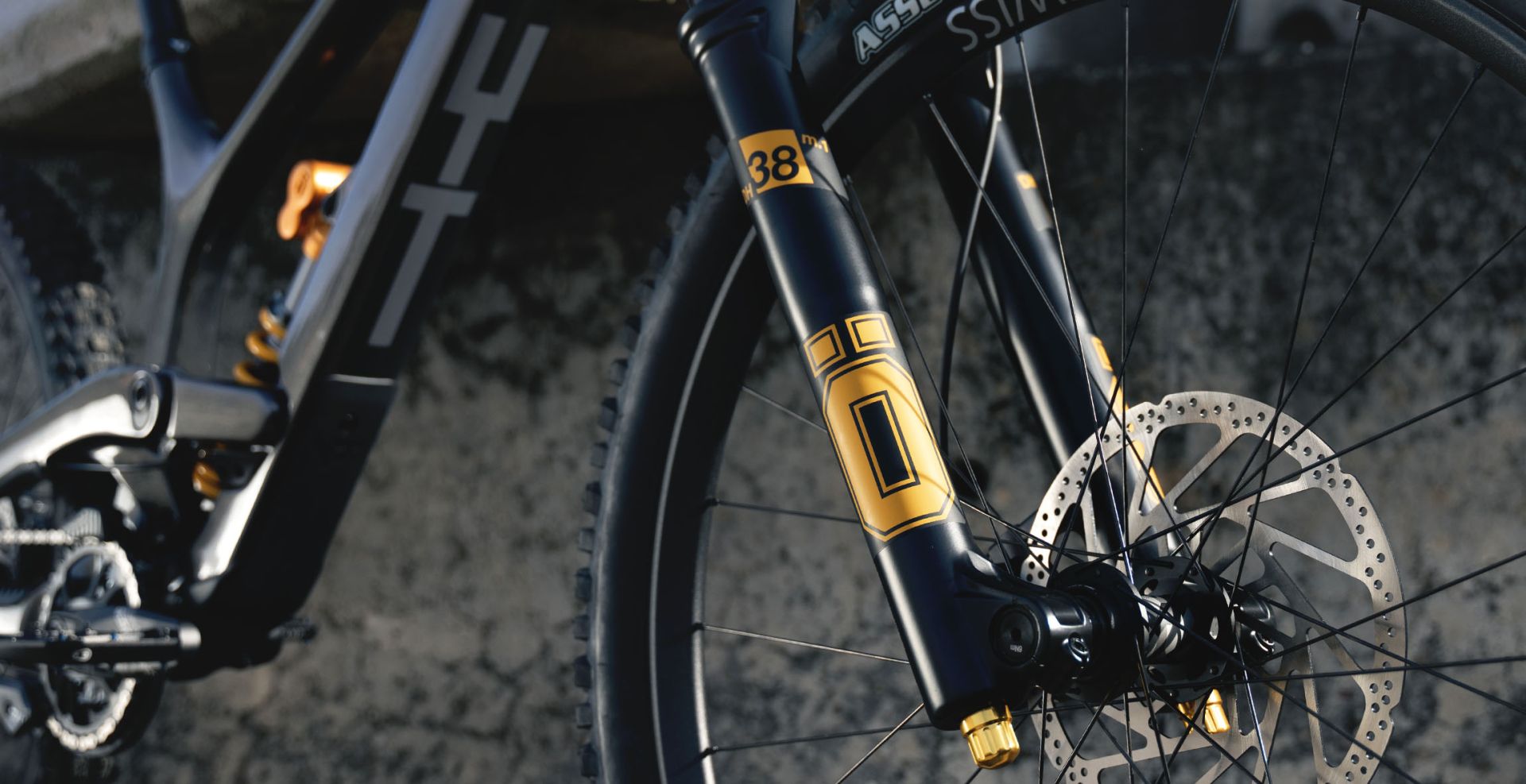

Fork ÖHLINS DH38 M.1 29" | 200mm | TTX18 | 110x20mm | 54mm Offset

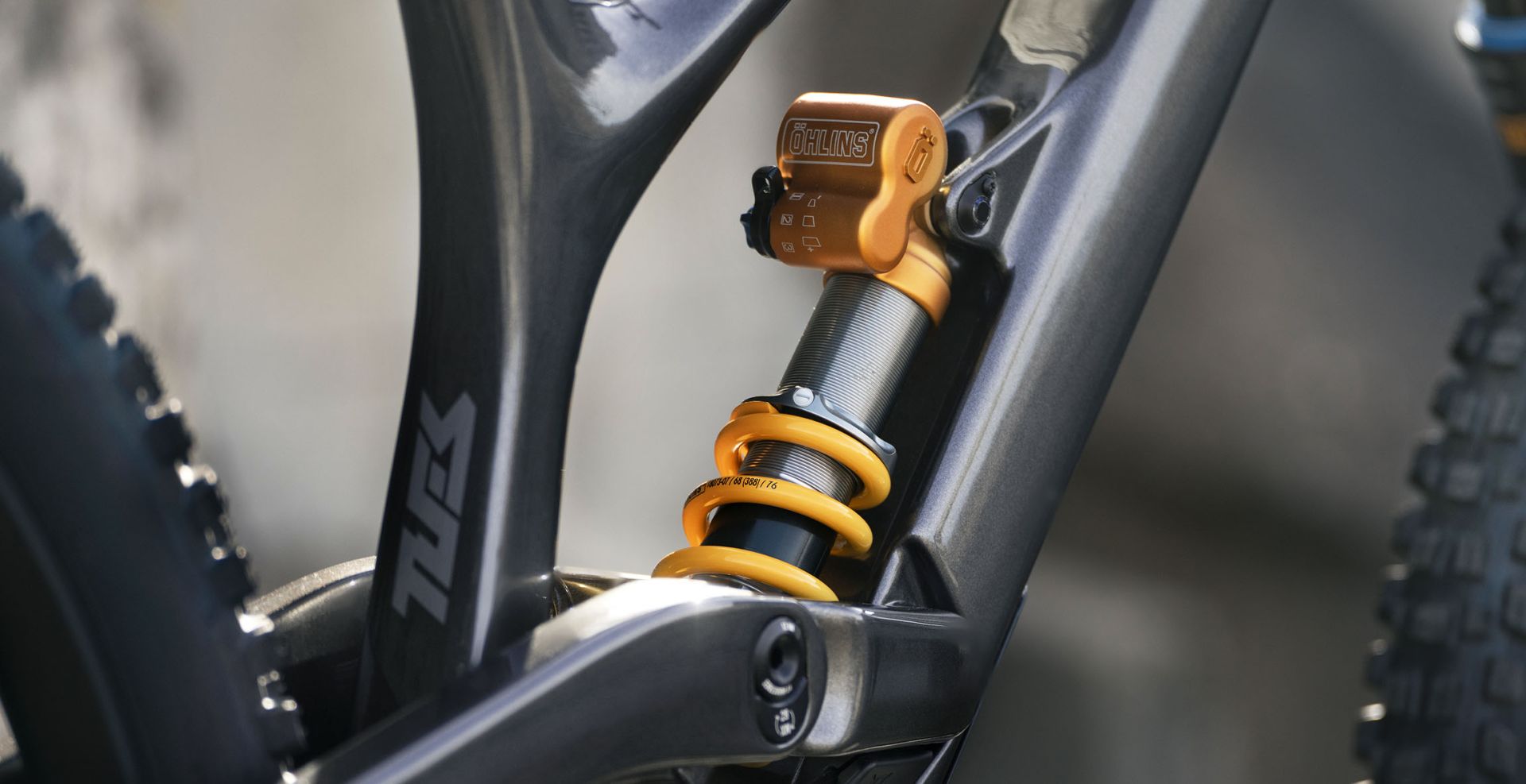

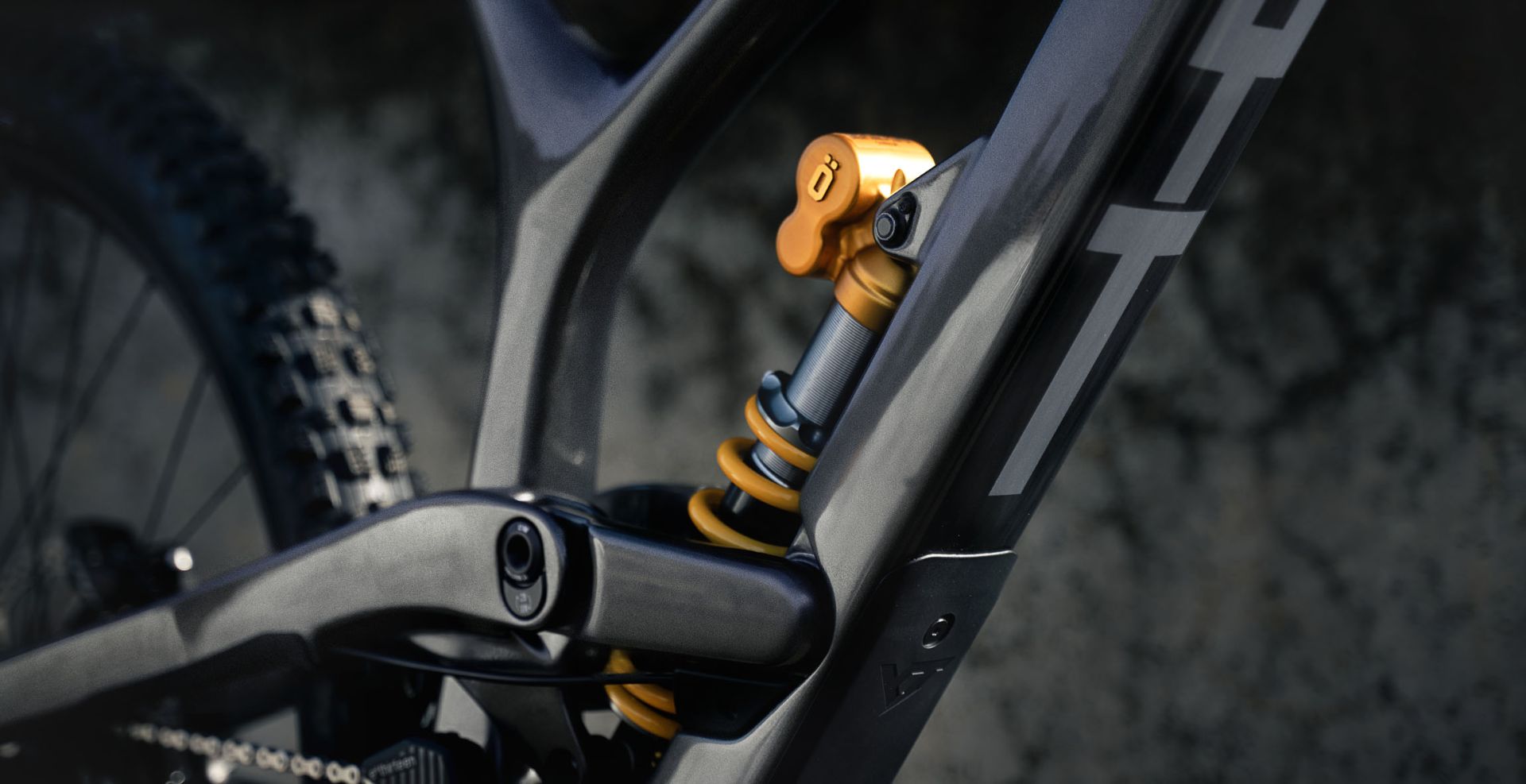

Shock ÖHLINS TTX22 M.2 Shock Length: 250 mm | Shock Stroke: 75mm | H/LSC LSR | C20R40 (S-L) | C20R50 (XL-XXL)
Spring ÖHLINS COIL

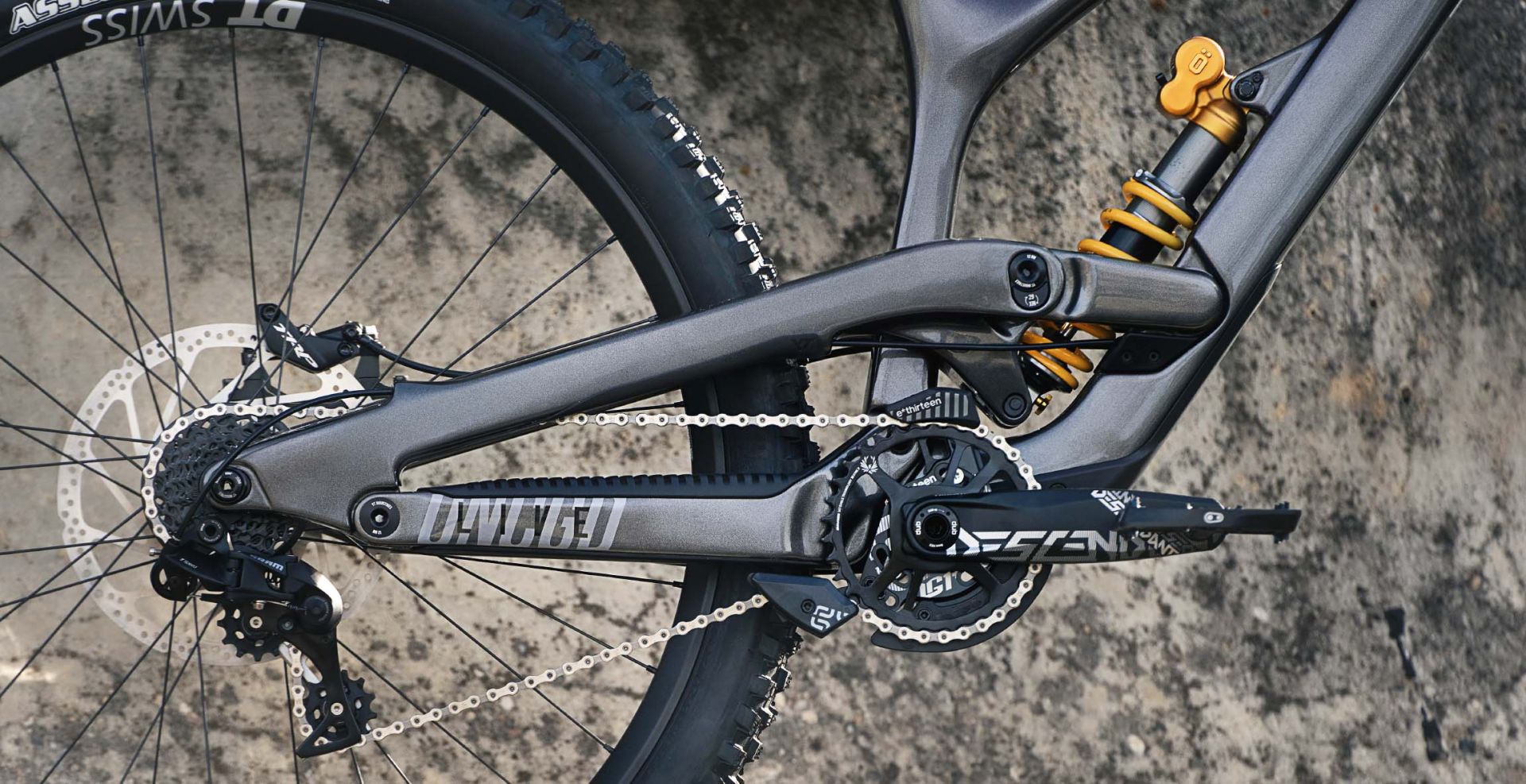

Drivetrain

Crankset SRAM GX DH 165 mm | 34T Custom | DUB
Cassette SRAM PG-720 DH 7-Speed | 11-25T
Rear Derailleur SRAM GX DH
Shifter Rear SRAM GX DH 7-Speed | MMX
Bottom Bracket SRAM DUB BSA BB DUB BSA 83 DH

Components

Headset ACROS AZX-255 ZS49 ZS56 | High Cap
Stem TITLE DM1 35 Length 44mm | +/-0° | Black
Handlebar TITLE AH1 35 800mm | 8° Back | 5° Up | 38mm Rise | Black
Grips ODI ELITE MOTION V2.1 Lock On

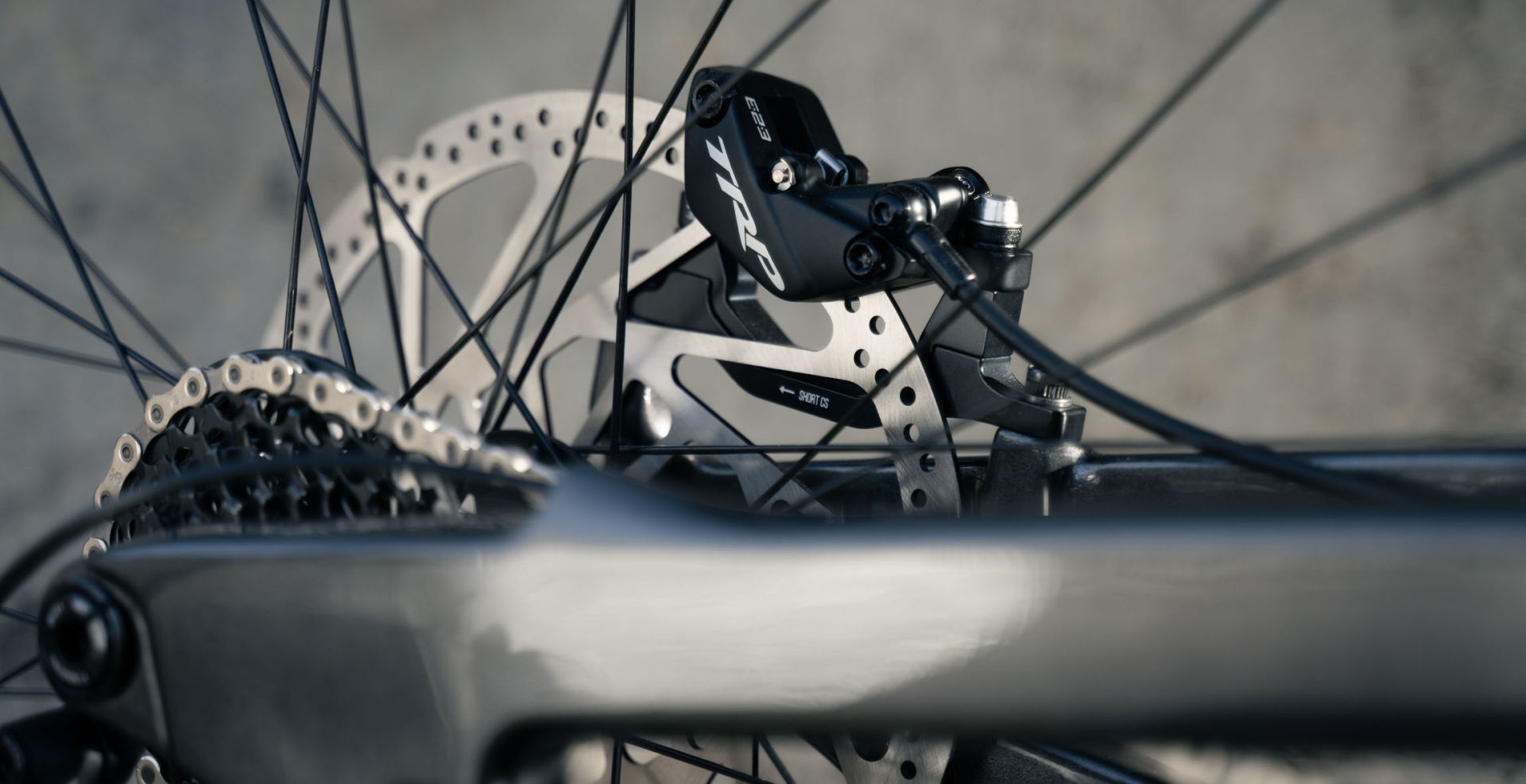

Brakes TRP DH-R EVO 2.3mm Rotor | 220 / 220 mm
Seatpost SDG I-Beam Alloy Ø 31.6mm | 300mm Length
Saddle SDG I-FLY 2.0 YT Custom | Width 128mm | I-Beam
Chainguide E13 LG1 Plus I05 | Compact Slider | 32 - 34 T

Weight

Weight 16.7 kg / 36.82 lbs Average weight for smallest size, tubeless, no pedals or bottle
