Izzo Core 4

MODEL. Choose your style

Izzo Core 4 $8,599.00
Izzo Core 3 $6,999.00
Izzo Core 2 $5,099.00
Izzo Core 1 $4,299.00

SIZE. Choose your fit

WHEELS. Pick your setup

COLOR. Pick your love

ACCESSORIES. More for your ride

CLOTHING. Style your performance

YOUR DREAM. At on glance

Availability

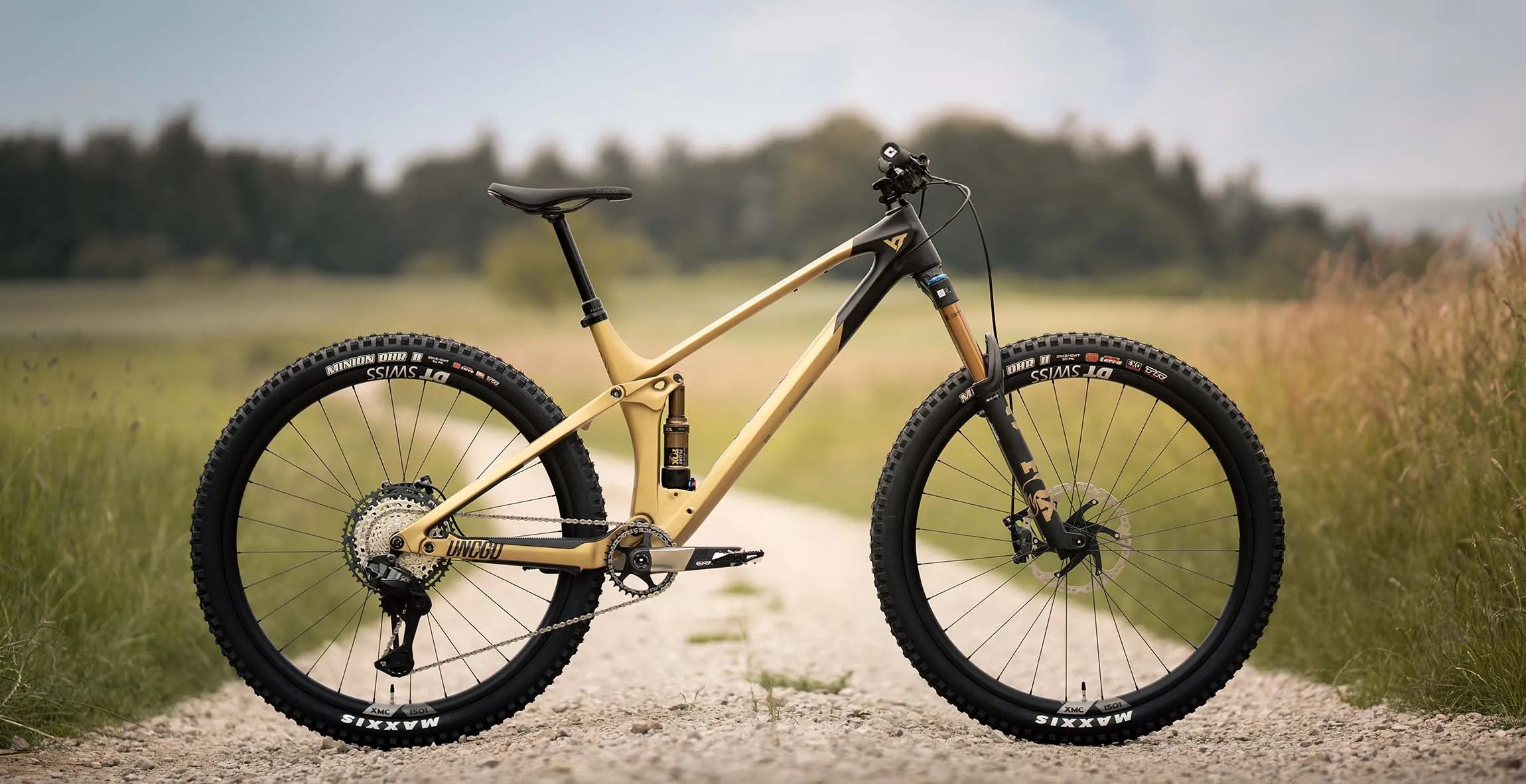

Izzo Core 4

It’s more than just a tagline. The IZZO CORE 4 is a bike with precision at the heart of its design, engineered to crush your personal bests and destroy your preconceived ideas of what a trail bike can achieve. From the moment you put the power down, the sleek 130mm frame comes alive – we built the IZZO for all-day epics, your local loop, and everything in between. Sitting at the pinnacle of the range, this model leverages the most performance-driven components available, including the cutting-edge Shimano XT Di2 wireless drivetrain, a next-gen FOX 36 Factory SL fork, and a healthy dose of carbon fiber from Raceface and DT Swiss.

Specifications

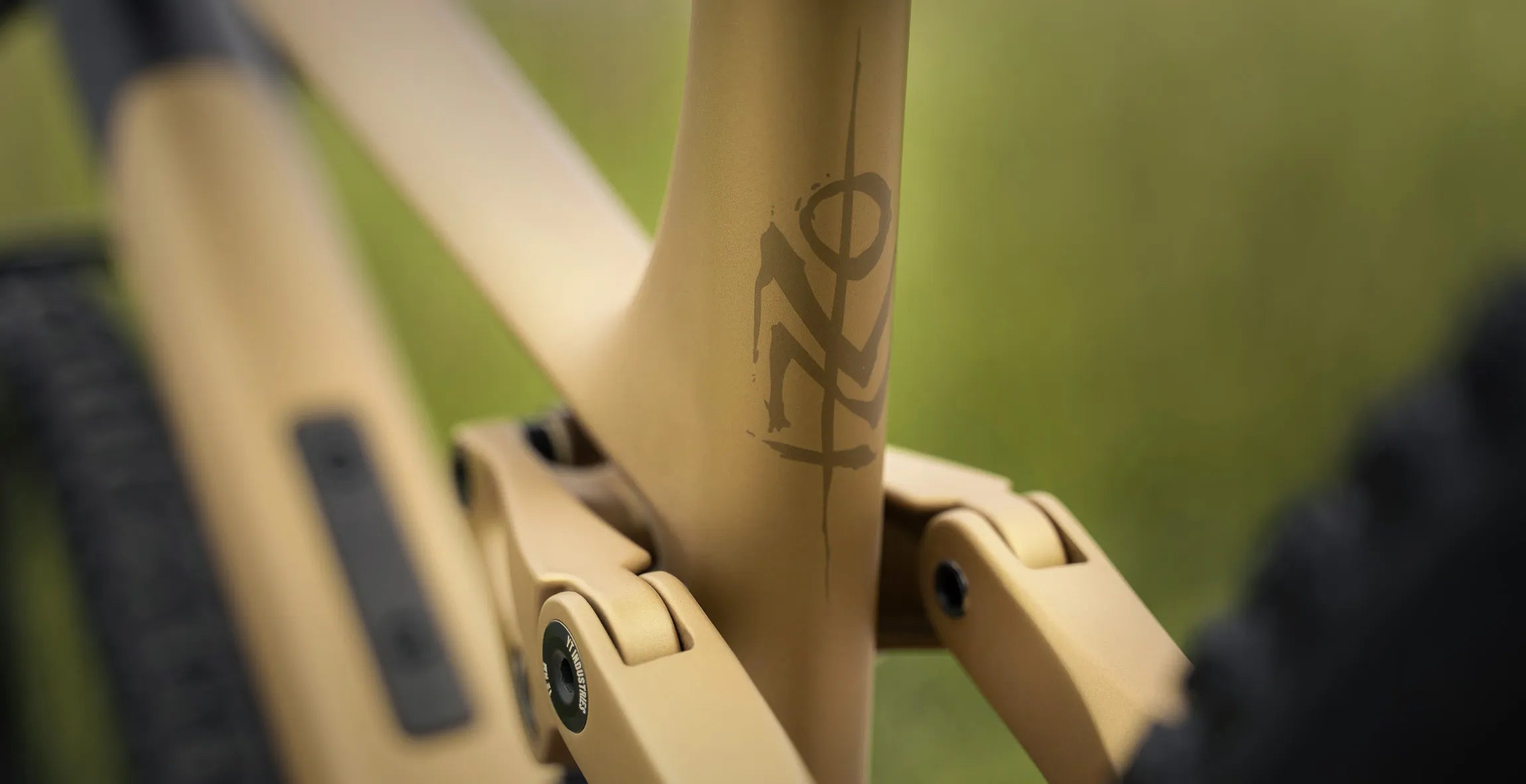

Frame

Frame Size S, M, L, XL, XXL
Color Crane Gold
Frame Storage CRANKBROTHERS S.O.S TS2 Tube Stash OE
Hydration Thirstmaster 5000 Compatible with, not Included

Wheels

Wheels DT SWISS XMC 1501 Carbon Rims 29" | Inner Width 30mm | Front Hub 110 x 15mm | Rear Hub 148 x 12mm | 240 Ratchet DEG 90 | Microspline Freehub | 6-Bolt
Tires MAXXIS MINION DHR II Front: 29'' x 2.4 WT | 3C MaxxTerra | EXO | TR | Rear: 29'' x 2.4 WT | MaxxTerra | EXO+ | TR

Suspension

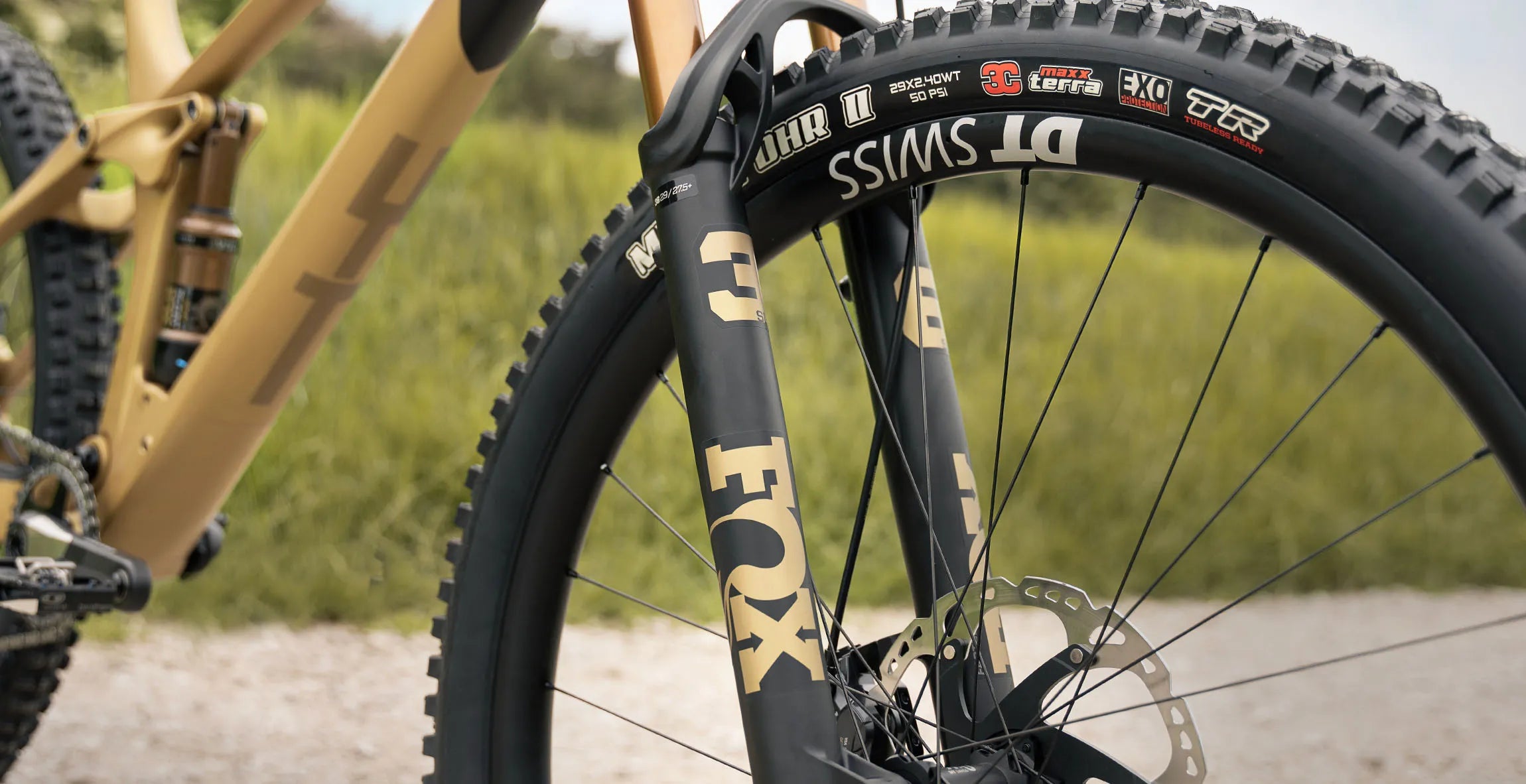

Fork FOX 36 FLOAT SL FACTORY 29" | 140mm | GRIP X2 | 15 x 110mm | 44mm Offset
Shock FOX FLOAT FACTORY 210 x 55 mm | 2 pos-Adjust | Custom Tune | 0 Spacer

Drivetrain

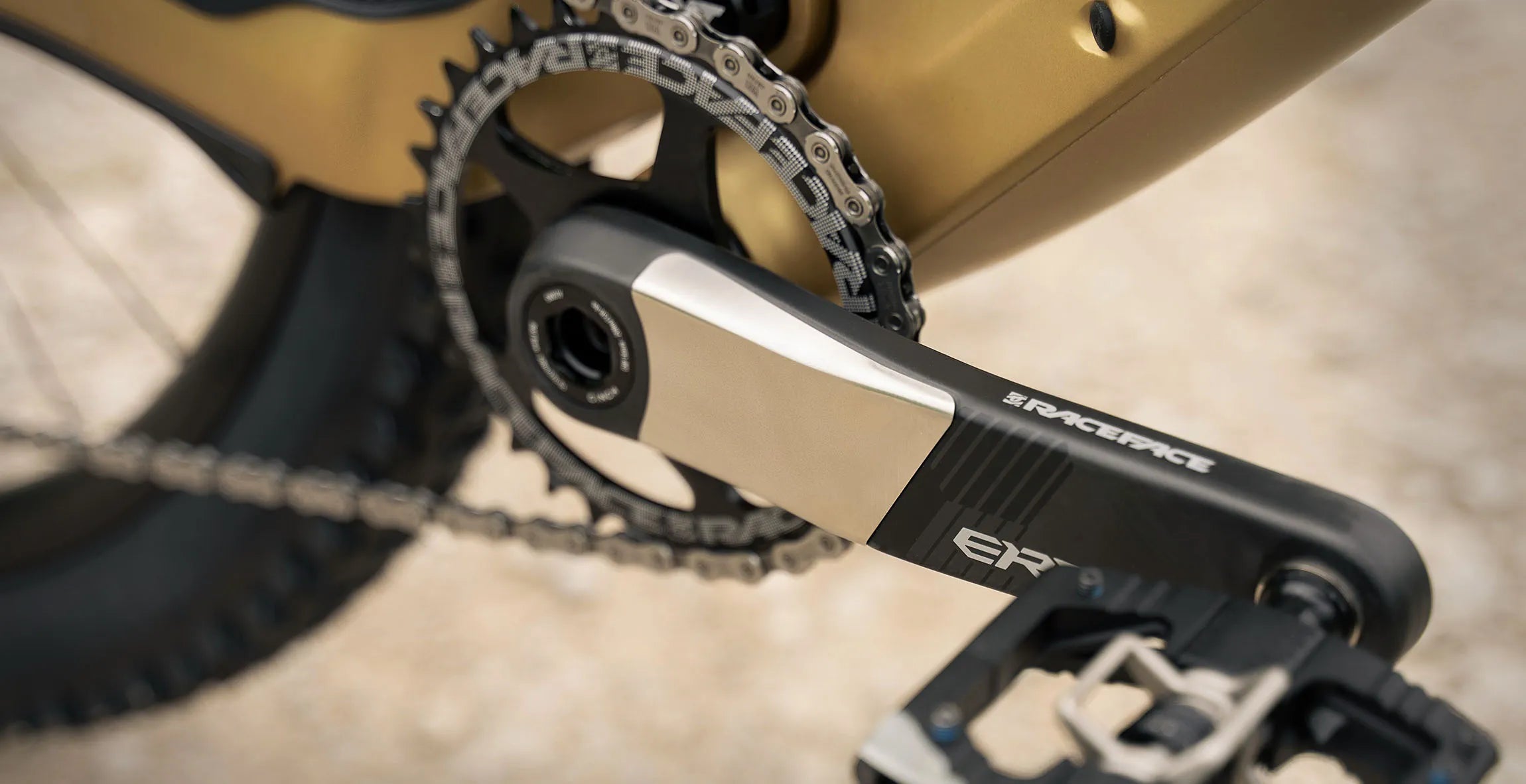

Crankset RACEFACE ERA 170mm | 32T | Carbon | 30mm
Cassette SHIMANO XT CS-M8200 10-51T | 12-Speed | Hyperglide+

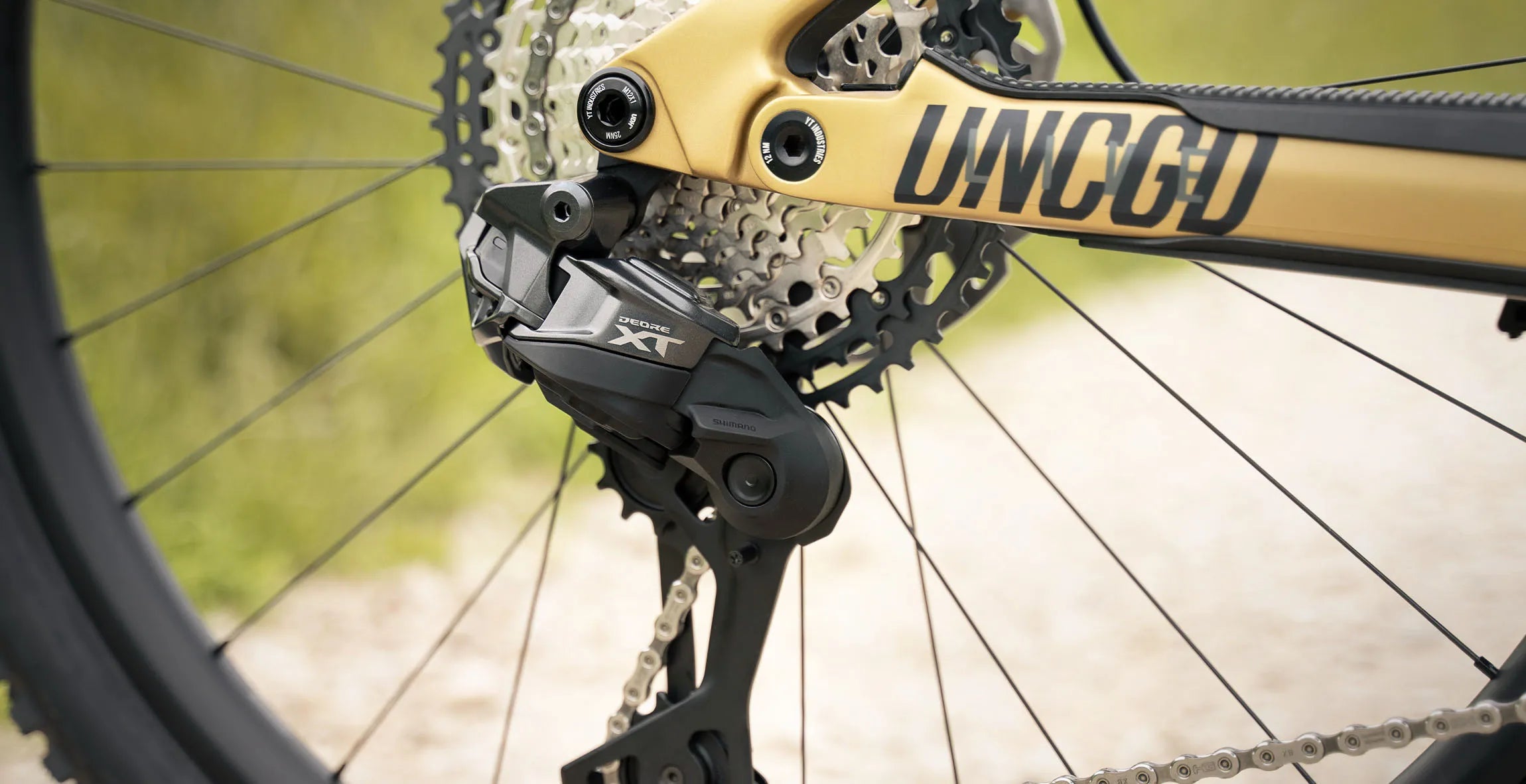

Rear Derailleur SHIMANO XT Di2 RD-M8250 12-Speed | Di2 | Shadow+

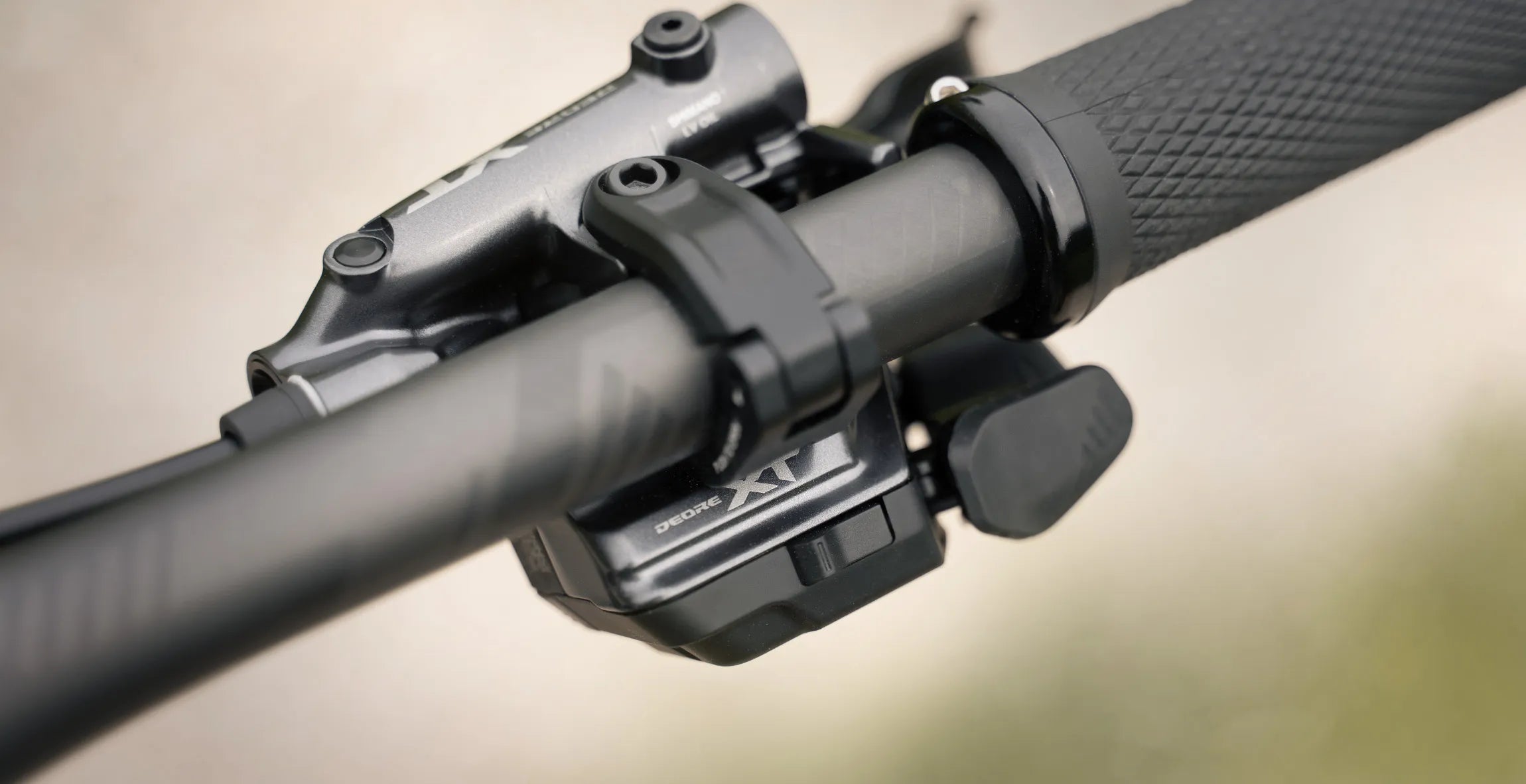

Shifter Rear SHIMANO XT Di2 RD-M8250 12-Speed | Di2 | Rapidfire Plus
Bottom Bracket RACEFACE BB92 BB 92 | 30mm

Components

Headset ACROS AZX 579 Block Lock (S-M), 579 (L-XXL) | 2 Spacer 5 mm
Stem RACEFACE TURBINE R 35 Length 50mm | 35mm Clamp | Rise 0°
Handlebar RACE FACE ERA CARBON 35 Width 780mm | Rise 20mm | 8° Back Sweep | 5° Up Sweep | GL-Tune
Grips ODI ELITE MOTION V2.1 Lock On

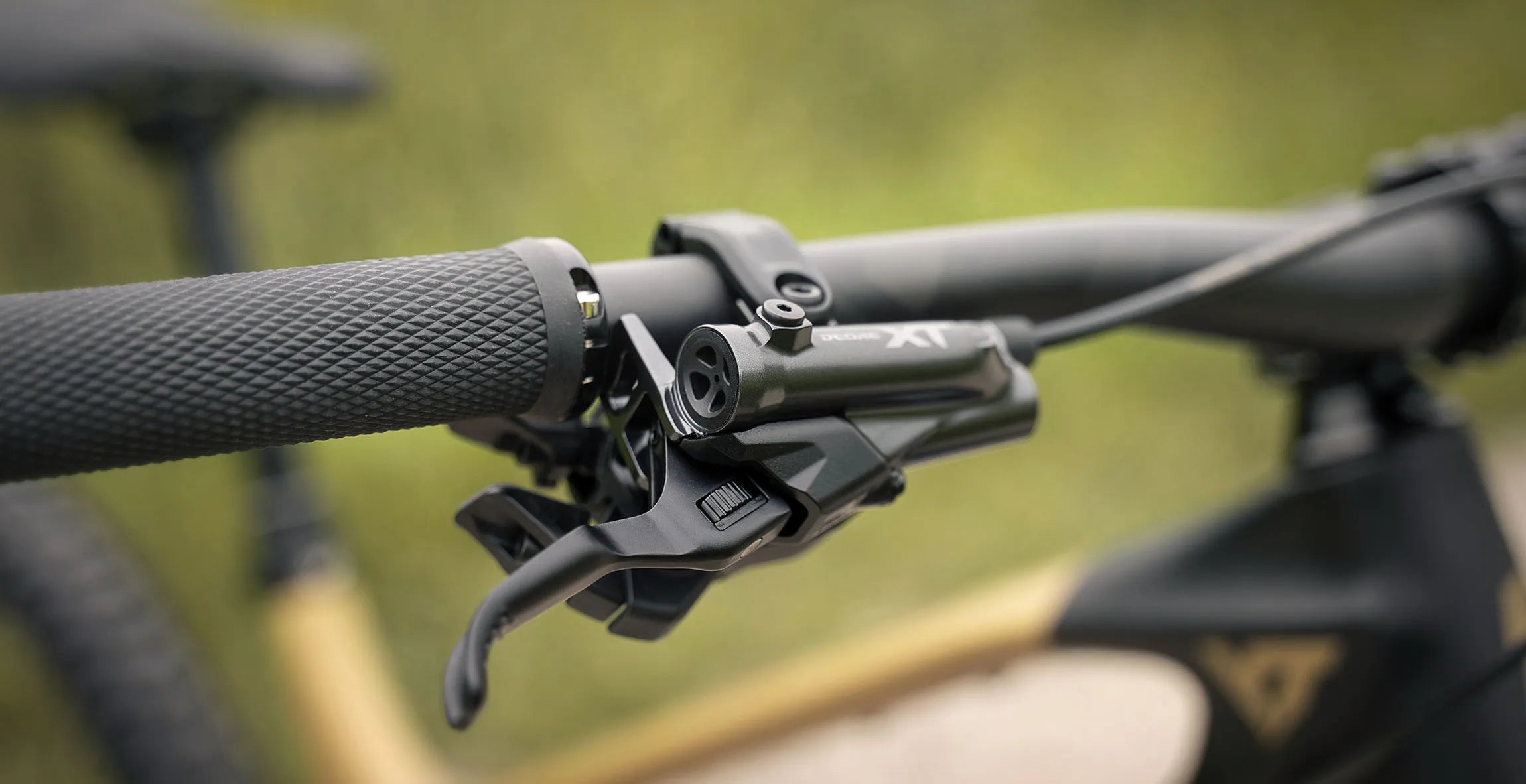

Brakes SHIMANO DEORE XT Rotor SM-RT86 | 203 mm / 180 mm | 6-Bolt
Seatpost YT POSTMAN V2 Ø 31,6 mm | SHIMANO SL-MT800 | Adjustable drop 25/10/5mm | 100 mm (S) | 125 mm (M) | 150 mm (L) | 170 mm (XL) | 200 mm (XXL)
Saddle SDG BEL AIR OVERLAND 3.0 YT Custom | Width 140 mm | Lux-Alloy Rail

Weight

Weight 13,90 kg / 30.64 lbs Average weight for the smallest size available, set up tubeless, with no pedals or bottle.
