Izzo Core 4

Configure your ride

Izzo Core 4

MODEL. Choose your style

Izzo Core 4 $8,599.00
Izzo Core 3 $6,999.00
Izzo Core 2 $5,099.00
Izzo Core 1 $4,299.00

SIZE. Choose your fit

WHEELS. Pick your setup

COLOR. Pick your love

ACCESSORIES. More for your ride

CLOTHING. Style your performance

YOUR DREAM. At on glance

Availability

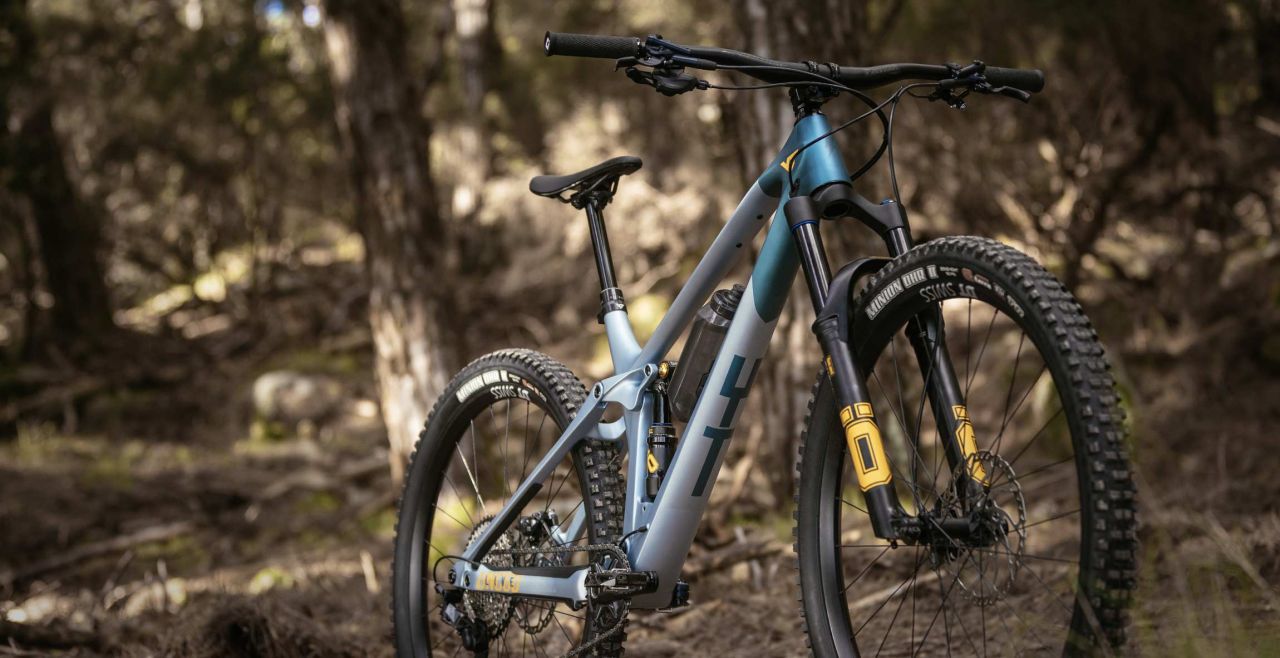

Izzo Core 3

IZZO is a purist trail bike in every sense, and this CORE 3 edition is ready to feed your singletrack addiction. Built around our highest-end Ultra Modulus carbon fiber, this lightweight powerhouse delivers precision to every ride, offering efficiency for the climbs and a taste of our signature YT DNA when gravity takes over. We only spec components we would run ourselves, including high-end DT Swiss wheels, a Renthal cockpit, and the latest suspension innovation from Öhlins: the all-new RXF36 M.3 fork.

Specifications

Frame

Frame Size S, M, L, XL, XXL
Color Mizu Silver, Black Magic Bolt
Frame Storage CRANKBROTHERS S.O.S TS2 Tube Stash OE
Hydration Thirstmaster 6000

Wheels

Wheels DT SWISS XM1700 29" | Inner Width 30mm | Front Hub 110 x 15mm | Rear Hub 148 x 12mm | 350 Ratchet 36 SL | Microspline Freehub | 6-Bolt
Tires MAXXIS MINION DHR II Front: 29'' x 2.4 WT | 3C MaxxTerra | EXO | TR | Rear: 29'' x 2.4 WT | MaxxTerra | EXO+ | TR

Suspension

Fork ÖHLINS RXF36 M.3 29" | 140mm | H/LSC LSR | 15x110mm | 51mm Offset
Shock ÖHLINS TTX1 AIR 210 x 55mm | H/LSC LSR | C30R40 (S-L) | C30R60 (XL-XXL)

Drivetrain

Crankset 170mm | 32T | Hollowtech 2
Cassette SHIMANO SLX CS-M7100 10-51T | 12-Speed | Hyperglide+
Rear Derailleur SHIMANO SLX RD-M7100 12-Speed | Shadow+
Shifter Rear SHIMANO XT SL-M8100 12-Speed | Rapidfire Plus | 2-Way Release
Bottom Bracket SHIMANO BB-MT800-PA BB Press Fit 92 | 24mm

Components

Headset ACROS AZX 579 Block Lock (S-M), 579 (L-XXL) | 2 Spacer 5 mm
Stem RENTHAL APEX 35 50mm | +/-6° | Black/Black
Handlebar RENTHAL FATBAR 35 AL Width 780mm | Rise 20mm | 7° Back Sweep | 5° Up Sweep | Custom Black
Grips ODI ELITE MOTION V2.1 Lock On
Brakes SHIMANO SLX Rotor SM-RT66 | 203 mm / 180 mm | 6-Bolt
Seatpost YT POSTMAN V2 Ø 31,6 mm | SHIMANO SL-MT500 | Adjustable drop 25/10/5mm | 100 mm (S) | 125 mm (M) | 150 mm (L) | 170 mm (XL) | 200 mm (XXL)
Saddle SDG BEL AIR OVERLAND 3.0 YT Custom | Width 140 mm | Lux-Alloy Rail

Weight

Weight 14,20 kg / 31.30 lbs Average weight for the smallest size available, set up tubeless, with no pedals or bottle.
