Izzo Core 2

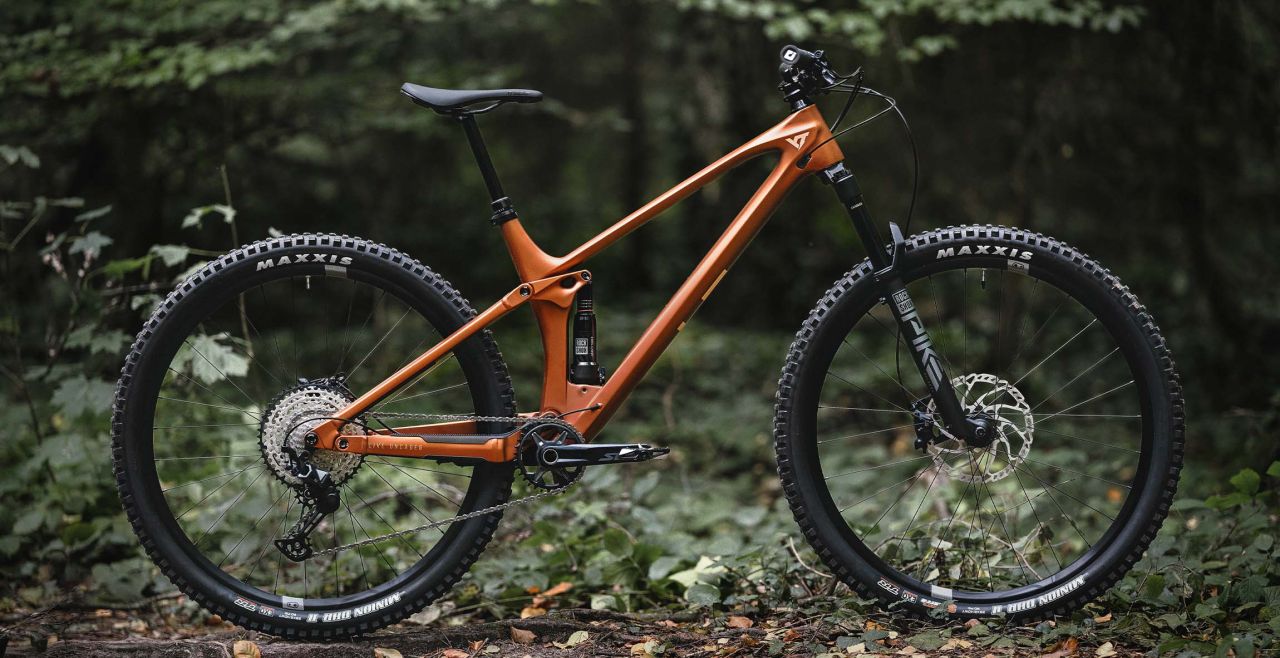

We built the IZZO for rolling singletrack, endless mileage, and venturing to the furthest reaches of the map. It’s a bike set to make light work of climbs, descents, and all that lies between, with 130mm of explosive rear travel on tap to turn trails into playgrounds before returning to plan your next adventure. When combined with the workhorse Shimano XT/SLX drivetrain, buttery RockShox suspension package, and fast-rolling Crankbrothers Synthesis XCT 2 wheels, the carbon hybrid frame comes alive to elevate your rides. This bike delivers on all fronts – prepare for an engaging experience like nothing before.

Specifications

Frame

Frame Size S, M, L, XL, XXL
Color Rakkan Red, Black Magic

Wheels

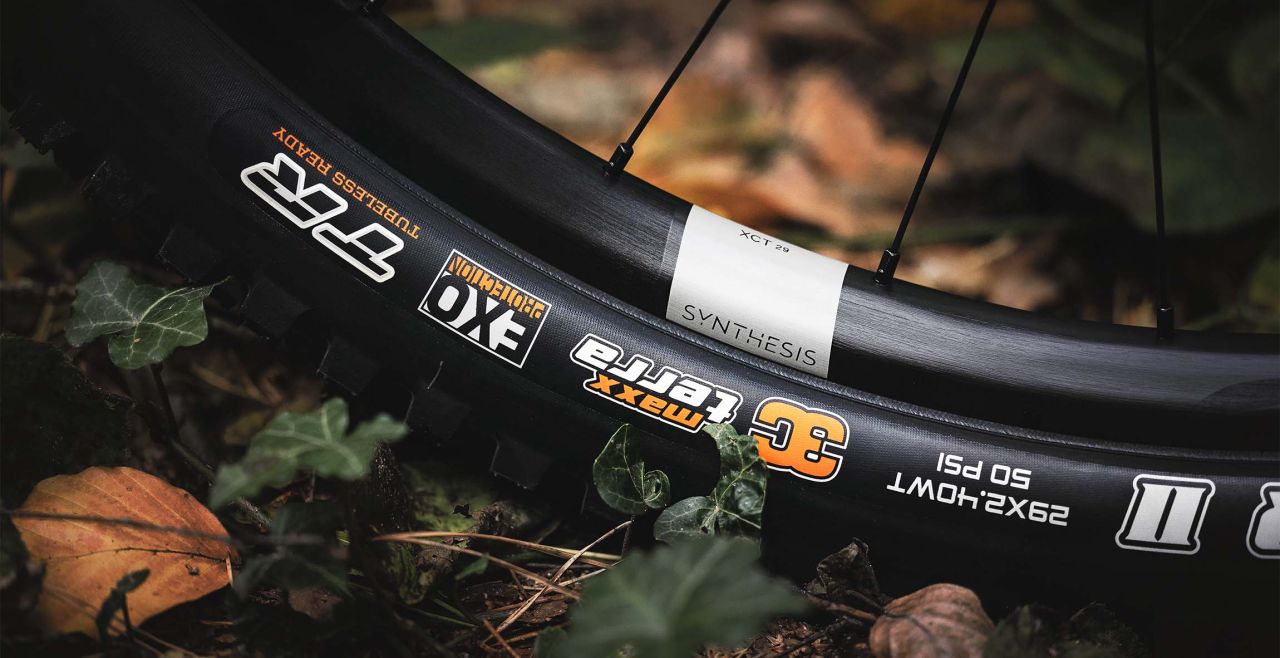

Wheels CRANKBROTHERS SYNTHESIS XCT 2 ALLOY Aluminium rims 29" | Front: Inner Width 26.5mm | 110 x 15mm | 6-Bolt | Rear: Inner Width 24.5mm | 148 x 12mm | 6-Bolt | Microspline Freehub
Tires MAXXIS MINION DHR II Front: 29'' x 2.4 WT | 3C MaxxTerra | EXO | TR | Rear: 29'' x 2.4 WT | Dual Compound | EXO | TR

Suspension

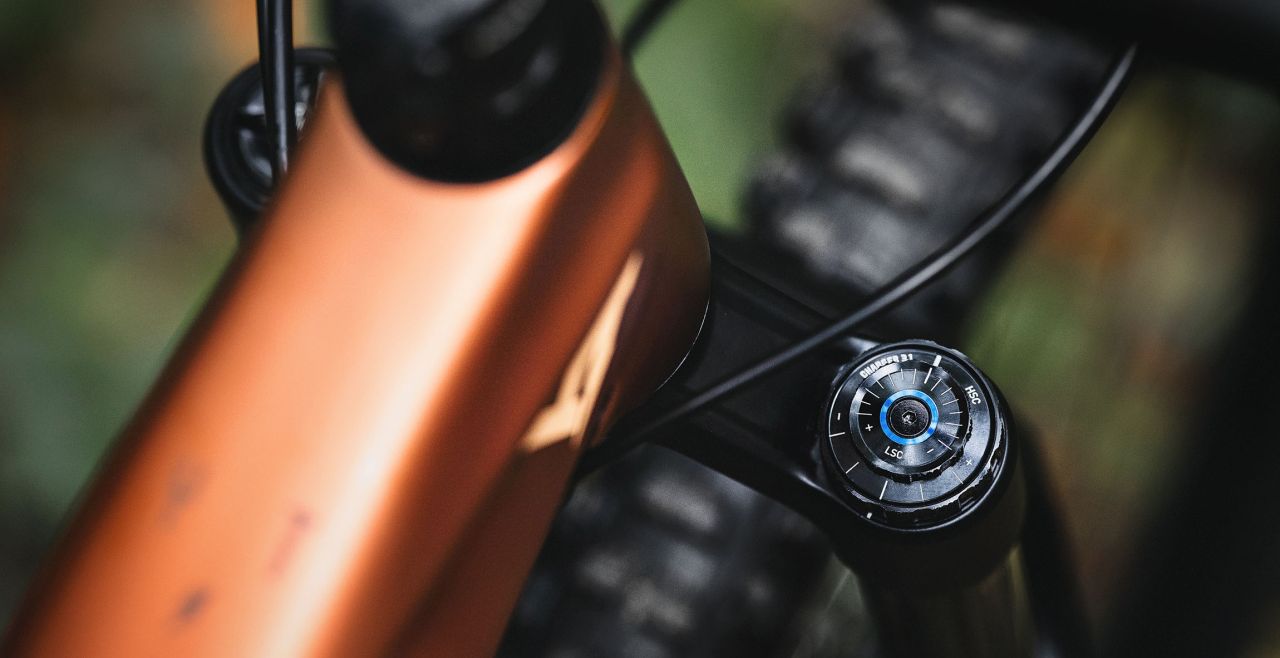

Fork ROCKSHOX PIKE SELECT+ 29" | 140mm | RC2 | CHARGER 3.1 | 15 x 110mm | 44mm Offset
Shock ROCKSHOX DELUXE SELECT+ 210 x 55mm | R 2-Pos Lever | DebonAir+ | 0L1 Spacer

Drivetrain

Crankset SHIMANO SLX FC-M7120 170mm | 32T | Hollowtech 2
Cassette SHIMANO SLX CS-M7100 10-51T | 12-Speed | Hyperglide+
Rear Derailleur SHIMANO SLX RD-M7100 12-Speed | Shadow+
Shifter Rear SHIMANO XT SL-M8100 12-Speed | Rapidfire Plus | 2-Way Release
Bottom Bracket SHIMANO BB-MT800-PA BB Press Fit 92 | 24mm

Components

Headset ACROS AZX 579 Block Lock (S-M), 579 (L-XXL) | 2 Spacer 5 mm
Stem RACEFACE AEFFECT R 35 50mm | +/-0°
Handlebar YT HANDLEBAR 35 Width 780mm | Rise 20mm | 8° Back Sweep | 6° Upsweep | Black
Grips ODI ELITE MOTION V2.1 Lock-On
Brakes SHIMANO SLX Rotor SM-RT66 | 203 mm / 180 mm | 6-Bolt
Seatpost YT POSTMAN V2 Ø 31,6 mm | SHIMANO SL-MT500 | Adjustable drop 25/10/5mm | 100 mm (S) | 125 mm (M) | 150 mm (L) | 170 mm (XL) | 200 mm (XXL)
Saddle SDG BEL AIR OVERLAND 3.0 YT Custom | Width 140 mm | Lux-Alloy Rail

Weight

Weight 14,30 kg / 31.52 lbs Average weight for the smallest size available, set up tubeless, with no pedals or bottle.
