Izzo
Izzo Core 4

Configure your ride

Izzo Core 4

MODEL. Choose your style

Izzo Core 4 $8,599.00
Izzo Core 3 $6,999.00
Izzo Core 2 $5,099.00
Izzo Core 1 $4,299.00

SIZE. Choose your fit

WHEELS. Pick your setup

COLOR. Pick your love

ACCESSORIES. More for your ride

CLOTHING. Style your performance

YOUR DREAM. At on glance

Availability

Izzo Core 1

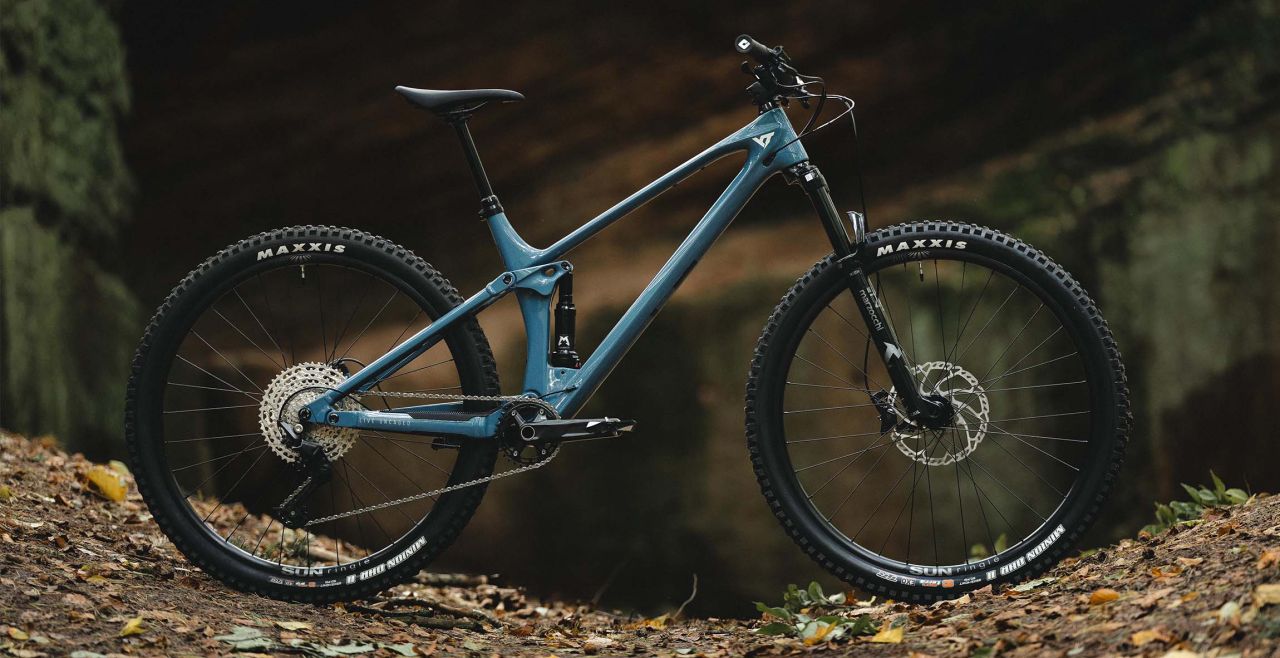

The IZZO is an energetic and responsive trail bike, designed to crush steep climbs before tearing up the descents. Built around our lightweight 130mm travel, hybrid carbon-aluminum frame, this versatile ride is our take on the classic short-travel ripper – the bike we reach for when craving efficiency and speed. At CORE 1 level, each component is hand-selected for its reliability, performance, and control, so you'll always be ready to dominate the session.

Specifications

Frame

Frame Size S, M, L, XL, XXL
Color Azzuri Blue, Black Magic

Wheels

Wheels SUNRINGLE SR329 TRAIL COMP Aluminium rims 29" | Front: Inner Width 30mm | 110 x 15mm | 6-Bolt | Rear: Inner Width 30mm | 148 x 12mm | 6-Bolt | Microspline Freehub
Tires MAXXIS MINION DHR II Front: 29'' x 2.4 WT | 3C MaxxTerra | EXO | TR | Rear: 29'' x 2.4 WT | Dual Compound | EXO | TR

Suspension

Fork MARZOCCHI BOMBER Z2 29" | 140mm | RAIL 2.0 | Sweep Adj. | 15 x 110mm | 51mm Offset
Shock MARZOCCHI BOMBER INLINE 210 x 55mm | Sweep Adjust | Custom Tune | 0.2 Spacer

Drivetrain

Crankset SHIMANO FC-M512 170mm | 32T
Cassette SHIMANO DEORE CS-M6100 10-51T | 12-Speed | Hyperglide+
Rear Derailleur SHIMANO DEORE RD-M6100 12-Speed | Shadow+
Shifter Rear SHIMANO DEORE SL-M6100 12-Speed | Rapidfire Plus | 2-Way Release
Bottom Bracket SHIMANO BB-MT500-PA BB Press Fit 92 | 24mm

Components

Headset ACROS AZX 579 Block Lock (S-M), 579 (L-XXL) | 2 Spacer 5 mm
Stem YT STEM 35 50mm | +/-0°
Handlebar YT HANDLEBAR 35 Width 780mm | Rise 20mm | 8° Back Sweep | 6° Upsweep | Black
Grips ODI ELITE MOTION V2.1 Lock-On
Brakes SHIMANO DEORE M6100 Rotor SM-RT66 | 203 mm / 180 mm | 6-Bolt
Seatpost YT SEATPOST Ø 31,6 mm | SHIMANO SL-MT500 | 100 mm (S) | 125 mm (M) | 150 mm (L) | 170 mm (XL) | 200 mm (XXL)
Saddle YT SADDLE 144 mm | Steel Rail | YT Custom

Weight

Weight 14,90 kg / 32.84 lbs Average weight for the smallest size available, set up tubeless, with no pedals or bottle.
