Decoy X
Decoy X Core 1

Configure your ride

Decoy X Core 1

MODEL. Choose your style

Decoy X Core 1 $6,999.00
Decoy X Core 4 $11,499.00
Decoy X Core 3 $9,999.00
Decoy X Core 2 $9,299.00
Decoy X Launch Edition $12,999.00

SIZE. Choose your fit

WHEELS. Pick your setup

COLOR. Pick your love

ACCESSORIES. More for your ride

CLOTHING. Style your performance

YOUR DREAM. At on glance

Availability

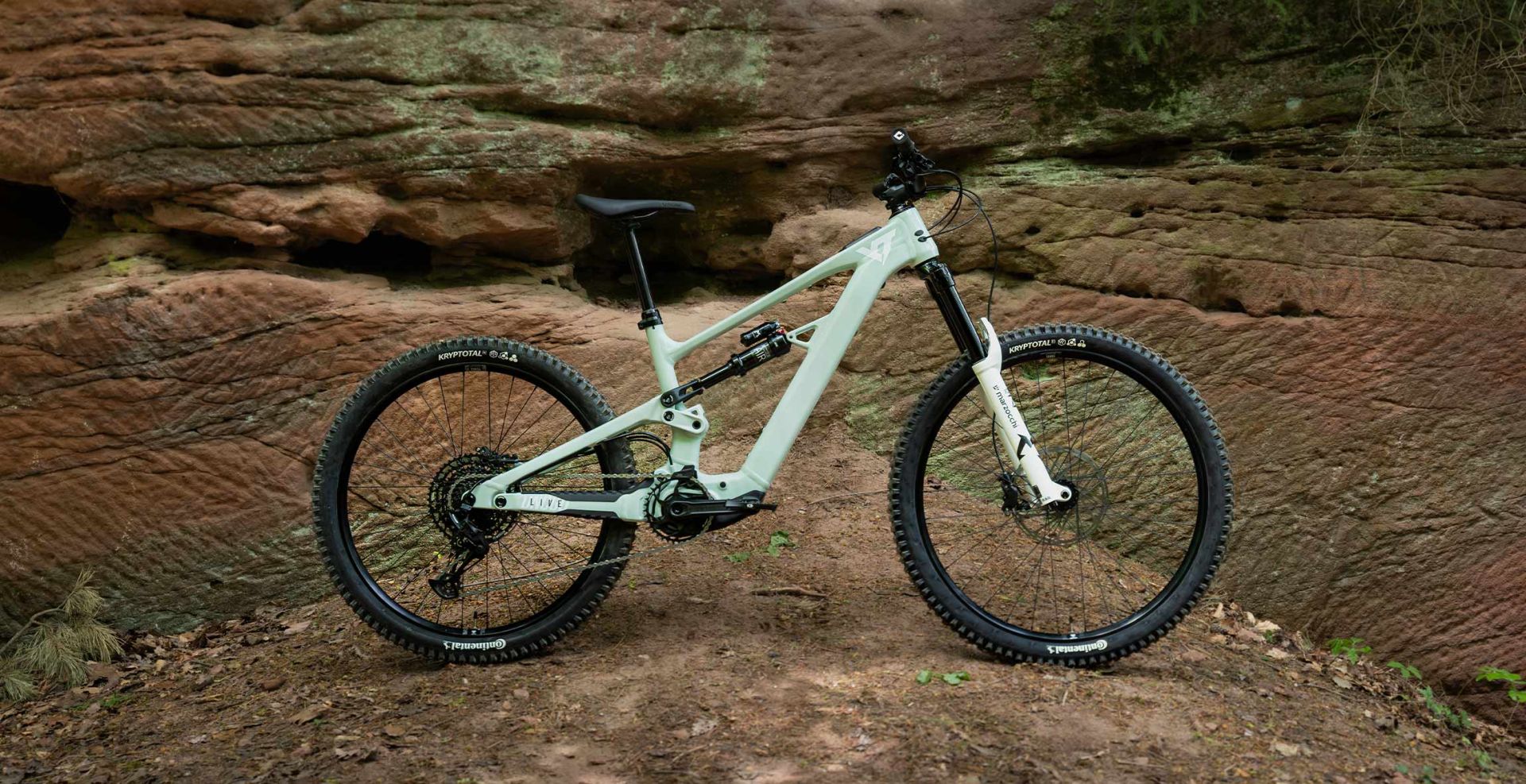

Decoy X Core 1

They say the best things in life are either illegal or out of reach – the DECOY X CORE 1 is neither. Hidden within its hydroformed aluminum frame is the same 150Nm Avinox M2S motor and 800Wh battery found on our flagship Launch Edition, delivering every ounce of power and range as the top-end of our lineup. Our gravity DNA is baked into this entry model. From its plush Marzocchi suspension to the aftermarket-inspired Continental Kryptotal tires, this is a build that can be set up in seconds and shredded for years, setting the standard for gateway E-MTB performance.

Specifications

Frame

Material Hydroformed Aluminum Sizes: S, M, L, XL, XXL
Color Pale Green
Hydration ThirstMaster 6000 Compatible 620ml bottle and cage not included | BPA free | easy to clean

Wheels

Wheels WTB SportTerra Tough Front: Aluminum Rim 29" | Inner Width 30mm | Front Hub 110 x 15mm | Rear: Aluminum Rim 27.5" | Inner Width 30mm | Rear Hub 148 x 12mm | HG
Tires Front: Continental Kryptotal FR | Rear: Continental Kryptotal-Re Front: 29'' x 2.4 | Super Soft | Enduro | Rear: 27.5'' x 2.4 | Soft | Downhill

Suspension

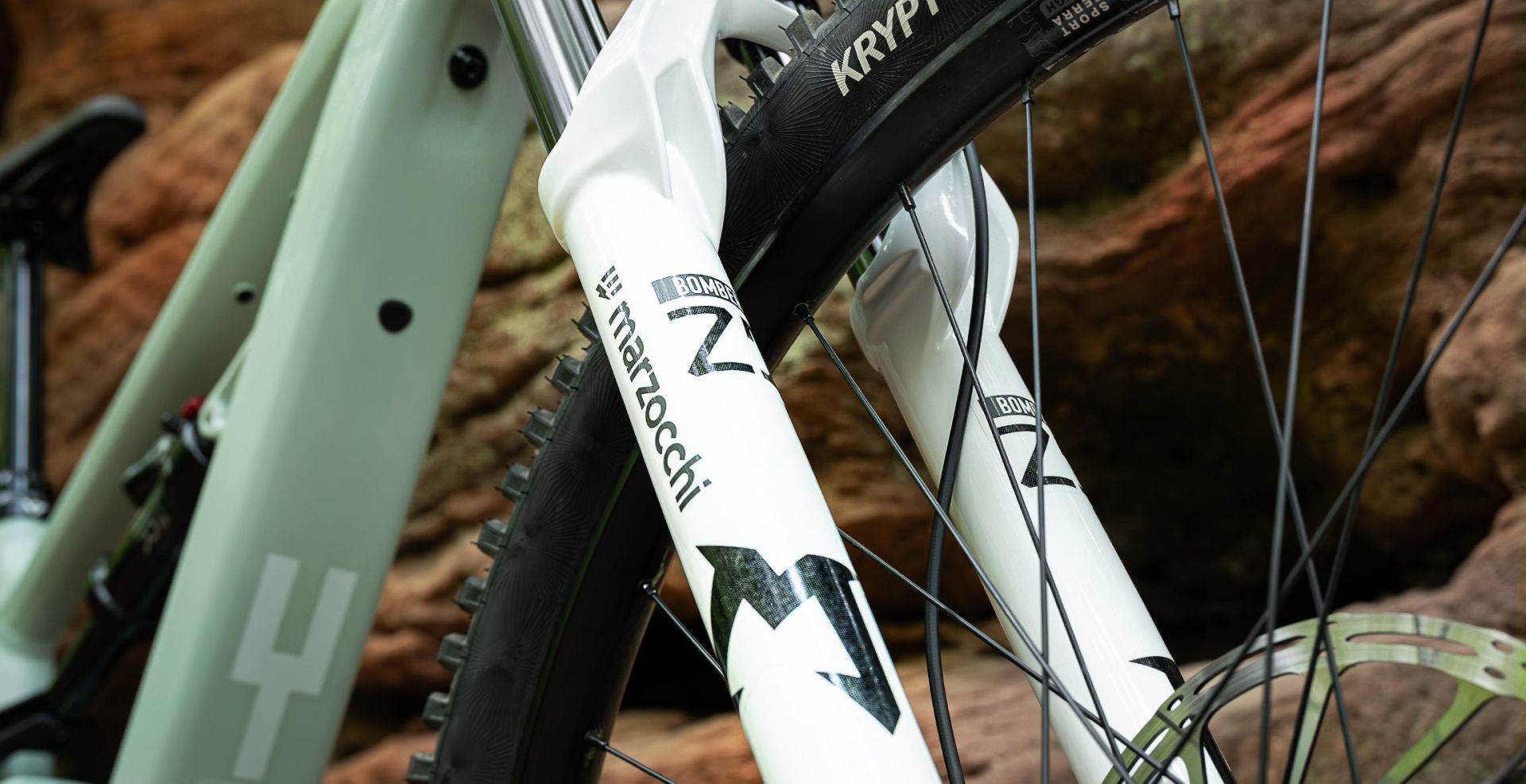

Fork Marzocchi Bomber Z1 29" | 170mm | RAIL 2.0 | 110 x 15mm | 44mm Offset

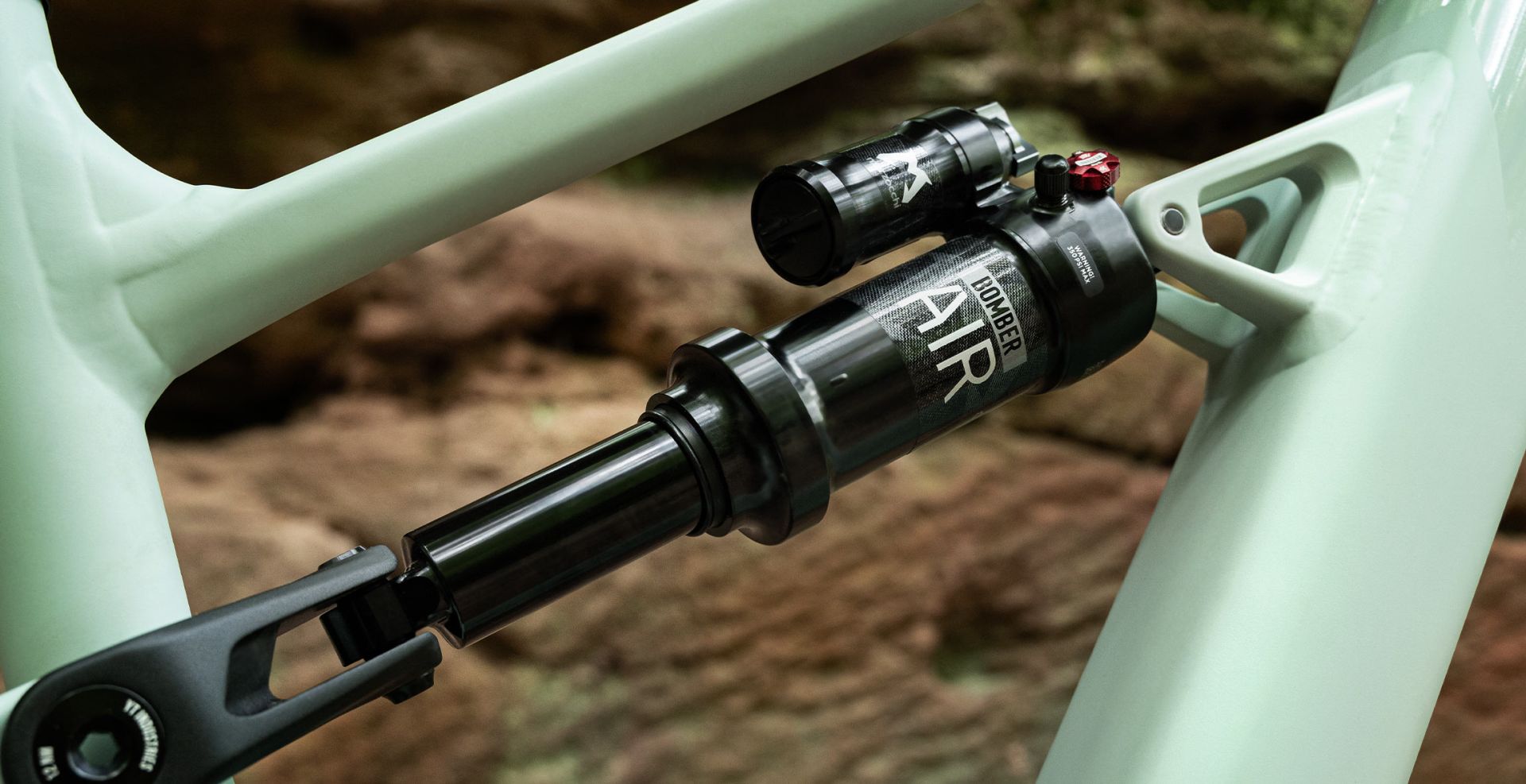

Shock Marzocchi Bomber Air 230 x 65 mm | Sweep Adjust | Custom Tune | 0.2 Spacer

Drivetrain

Crankset e13 Helix Core E*Spec Crank Arm Length 160mm

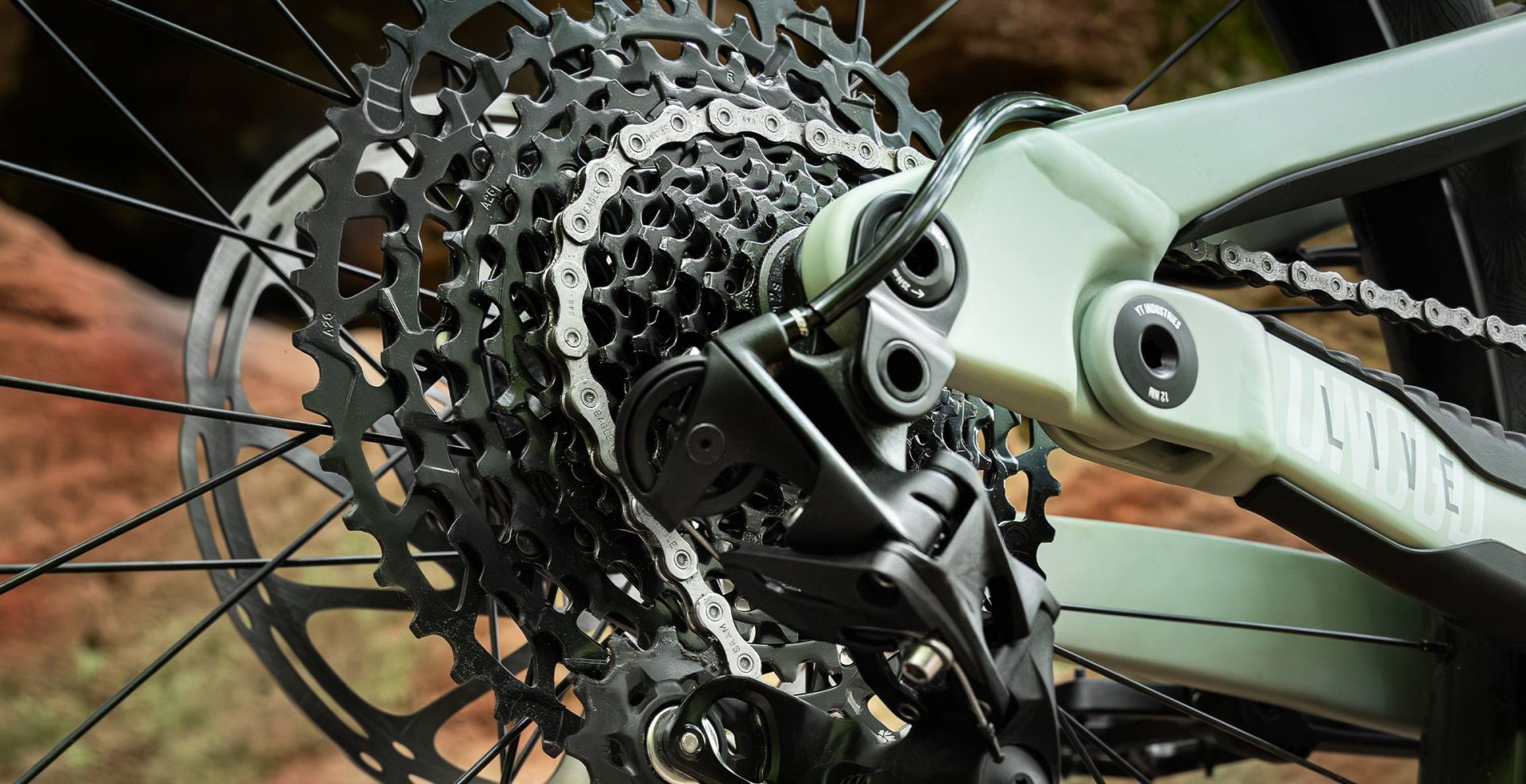

Cassette SRAM PG-1210 Eagle 10-52T | T-Type | 12-speed
Rear Derailleur SRAM S100 Eagle 12-speed | T-Type
Chainring SRAM Eagle Transmission 36T | AVINOX | T-Type
Shifter SRAM S200 Eagle 12-Speed | MMX

E-Drive

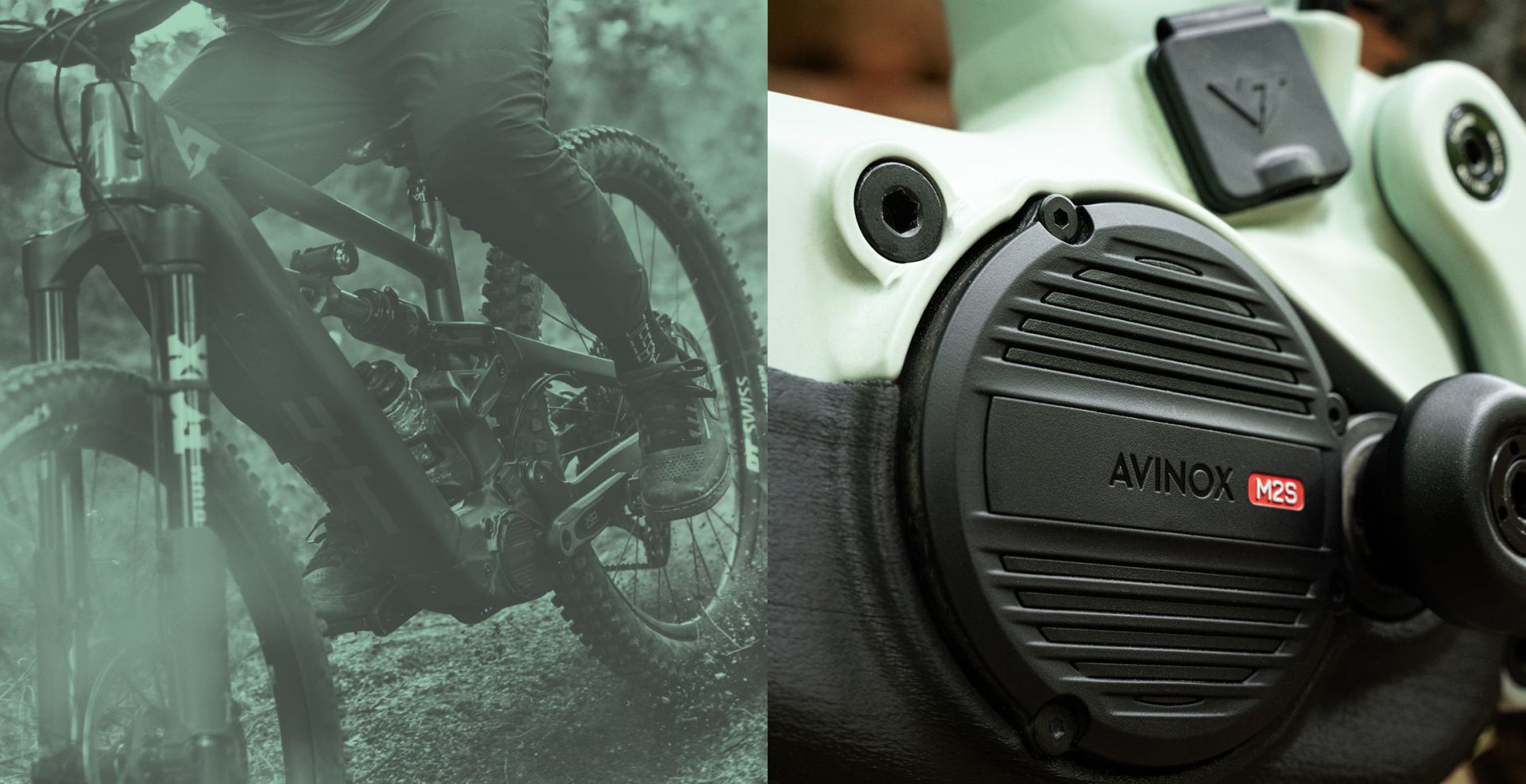

Drive Unit AVINOX M2S Torque 150Nm | 1300 W Peak Power w/ Boost function
Battery AVINOX 800 Fixed Integrated | 800 Wh | 43 V

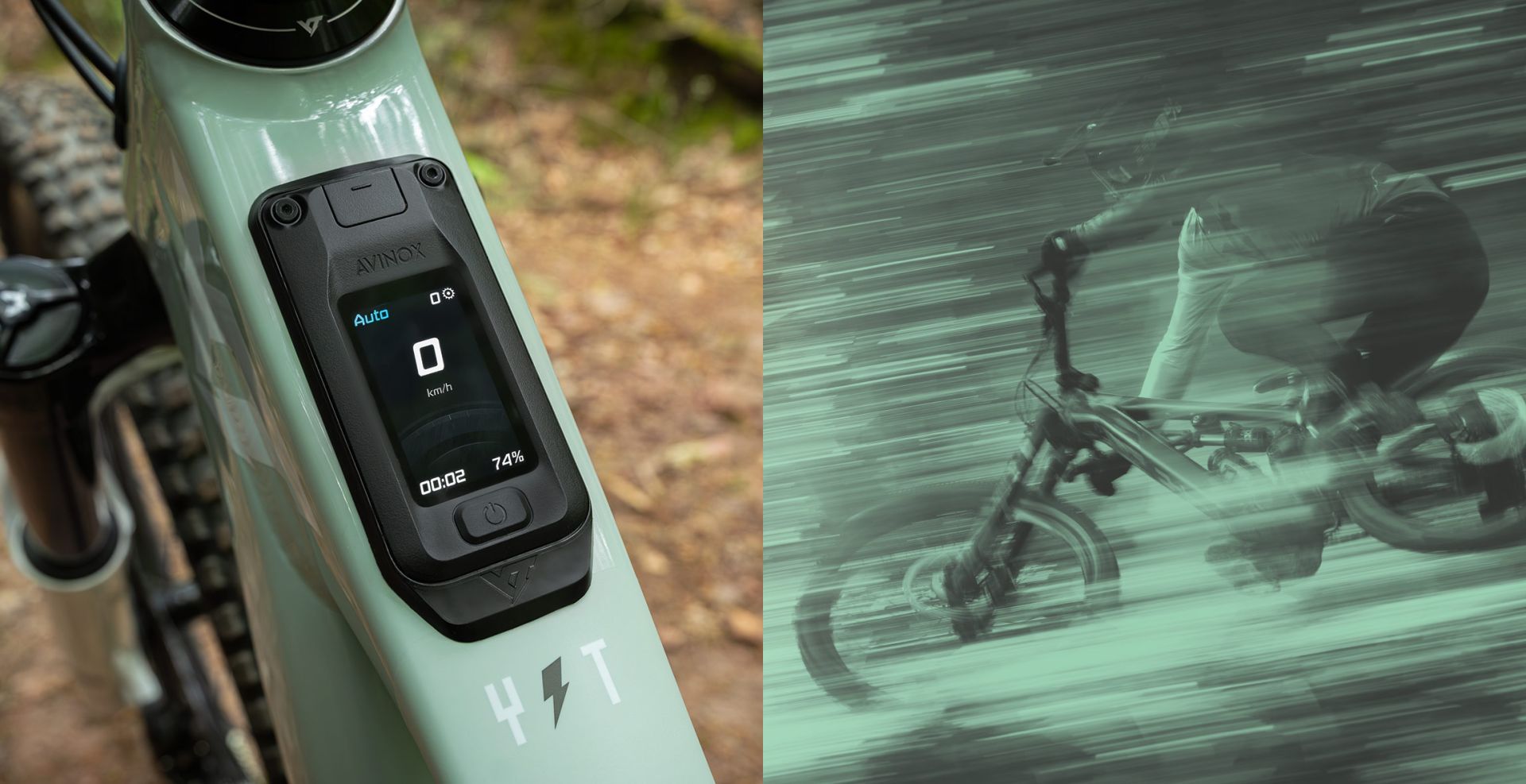

Display AVINOX DPC100 2'' Touch Screen | USB-C | Bluetooth | Apple Find My™

Components

Headset Cane Creek Series 40 ZS56 ZS56 | Custom High Cap | 3 x 5mm Spacers
Stem YT Stem 35 Length 50mm | 35mm Clamp | Rise +/-0° | Black
Handlebar YT Handlebar Width 800mm | Rise 40mm | 8° Back Sweep | 6° Up Sweep | Black
Grips ODI Elite Motion V2.1 Lock On

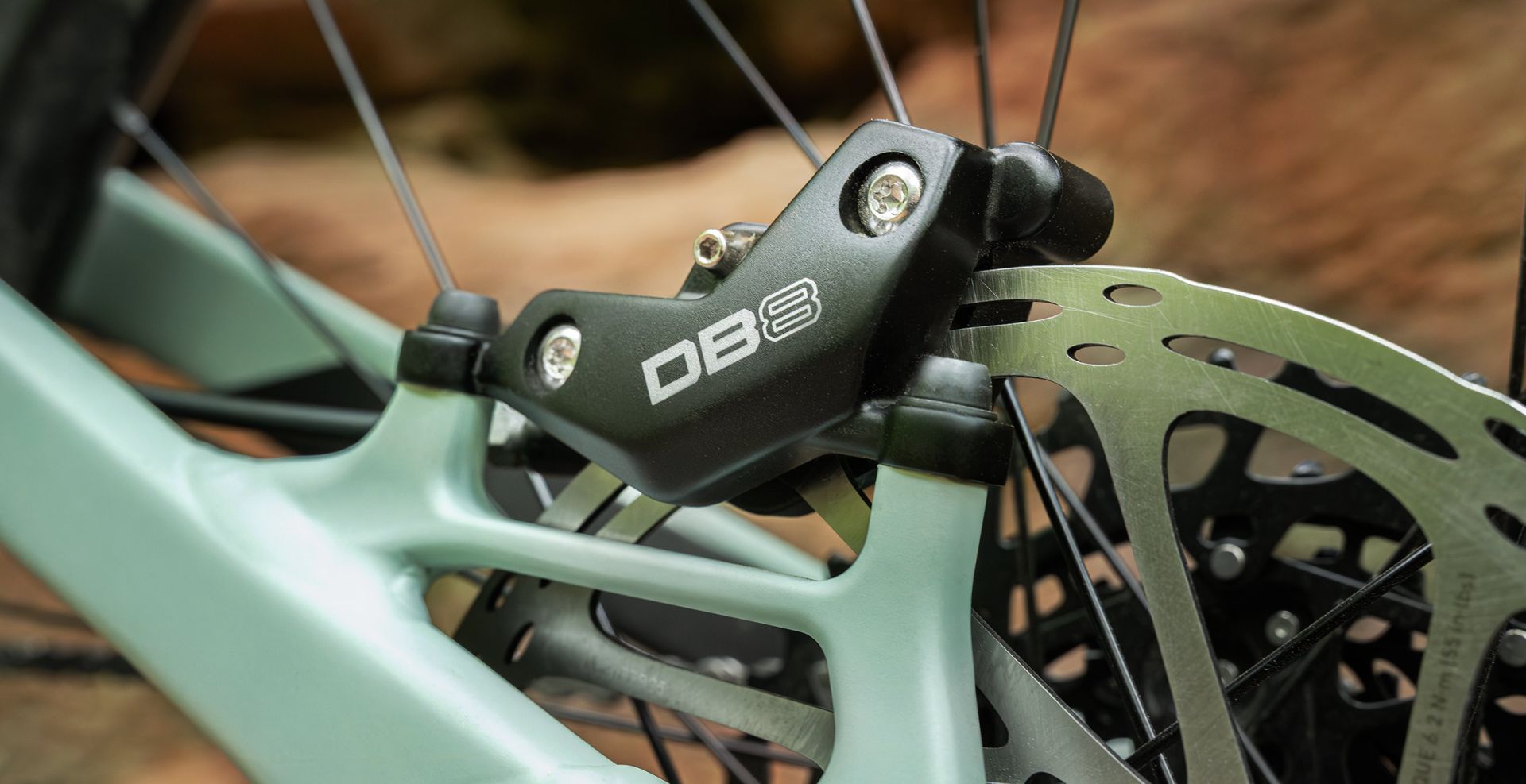

Brakes SRAM DB8 Stealth CenterLine Rotor Ø front 220 mm / rear 200 mm | Maxima Mineral Oil
Seatpost YT Seatpost Ø 34.9 mm | MMX SRAM Dropper Lever | Adjustable Drop 20/10/5 mm | 150 mm (S) | 170 mm (M) | 200 mm (L - XL) | 230 mm (XXL)
Saddle SDG Bel Air V3 YT Custom | Width 140 mm | Lux-Alloy Rail
Chainguide MRP SL Custom SL Slider | 34 - 36T

Weight

Weight 24.8 kg / 54.6 lbs Average weight for the smallest size available, set up tubeless, with no pedals or bottle.
