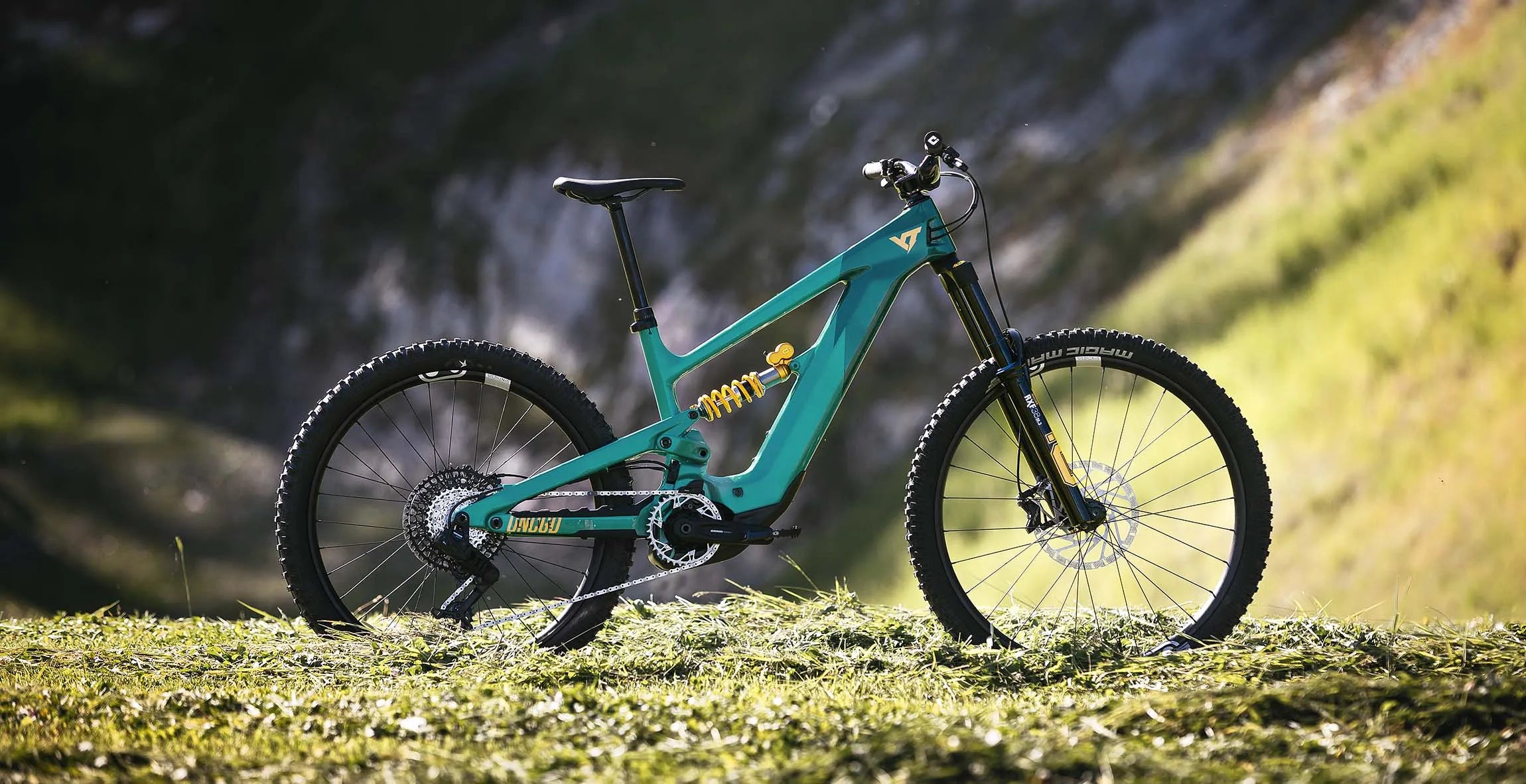

Decoy MX Core 3

The CORE 3 is the misfit in the new DECOY family and our burliest E-MTB to date. Tapping into our freeride heritage, we've distilled downhill-bike capability into a relentless fun machine, equipping an Öhlins TTX22 m.2 coil rear shock and a tough DH casing rear tire to supercharge its gravity performance. Armed with MX wheels, 180/170mm of suspension, and parts from TRP, SRAM, and Title, it's spec'd for maximum carnage; this a bike built to handle constant abuse on the most brutal terrain out there. Matching its performance demands courage, but with confidence like this, you'll always give it your all.

Specifications

Frame

Frame Size S, M, L, XL, XXL
Color Metallic Moss, Black Magic Bolt

Wheels

Wheels CRANKBROTHERS SYNTHESIS V2 I9 ALLOY E-MTB Front: Aluminum Rim 29" | Inner Width 31.5 mm | Front Hub 110 x 15mm // Rear: Aluminum Rim 27.5" | Inner Width 31.5mm | Rear Hub 148 x 12mm | Freehub Industry Nine 1/1 XD
Tires FRONT: CONTINENTAL KRYPTOTAL-FR | REAR: CONTINENTAL KRYPTOTAL-RE Front: 29'' x 2.4 | SuperSoft | Enduro // Rear: 27.5'' x 2.4 | Soft | Downhill

Suspension

Fork ÖHLINS RXF38 M.3 29" | 180mm | 110 x 15mm | 44mm Offset

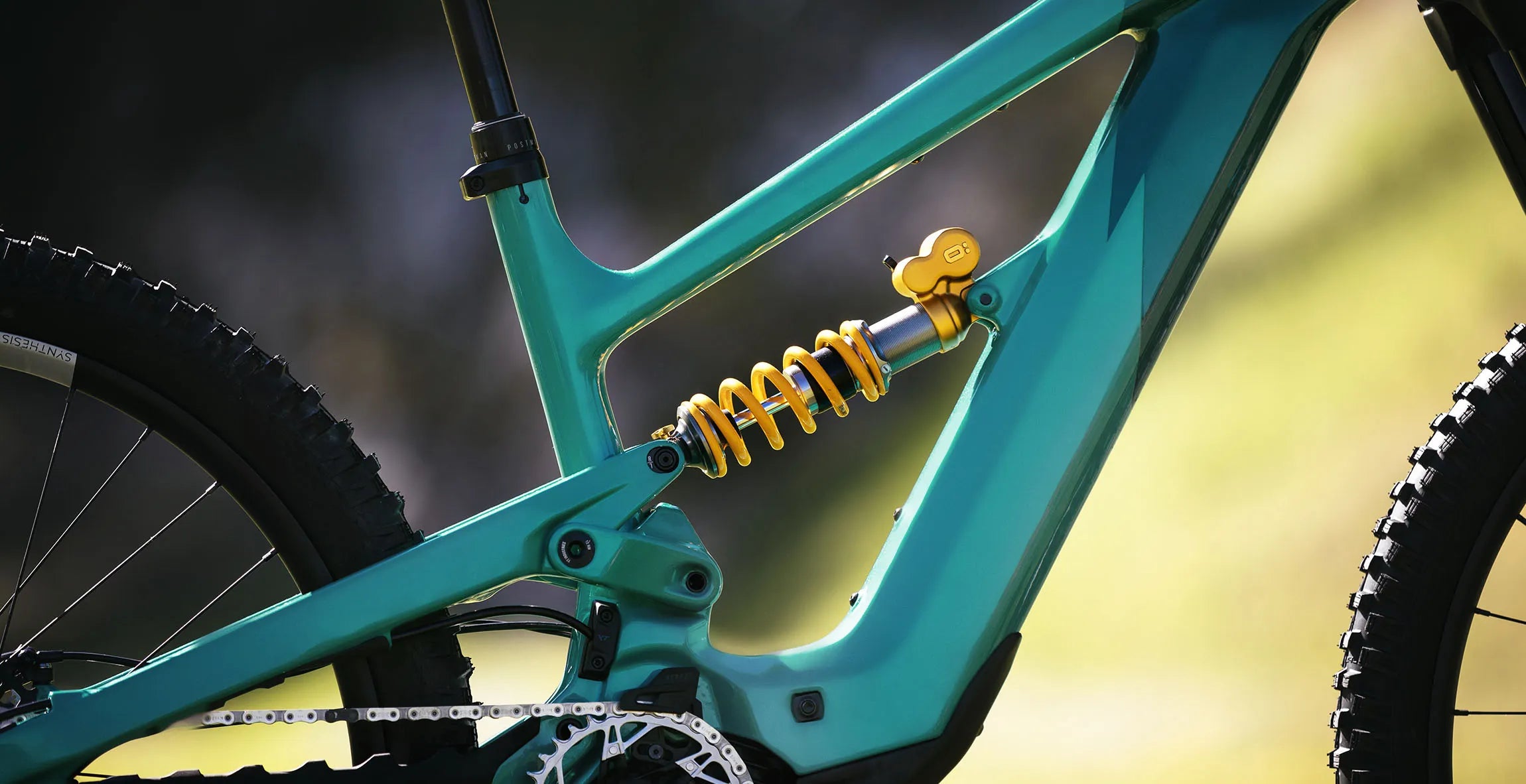

Shock ÖHLINS TTX22 M.2 Length: 230 x 65mm | H/LSC LSR | C10R20 (S-L) | C10R40 (XL-XXL) ÖHLINS STEEL SPRING (LBS): 365 (S) | 388 (M) | 434 (L) | 480 (XL) | 502 (XXL)

Drivetrain

Crankset SRAM S1000 EAGLE TRANSMISSION BOSCH | 160mm | BDU38
Cassette SRAM GX EAGLE XS-1275 TRANSMISSION 10-52T | T-Type | 12-speed
Rear Derailleur SRAM S1000 EAGLE TRANSMISSION 12-speed | T-Type | 10-52T
Chainring SRAM EAGLE TRANSMISSION XX 36T | Direct Mount | T-Type
Shifter Rear SRAM POD CONTROLLER 12-Speed | 2-Button | Discrete Clamp

E-Drive

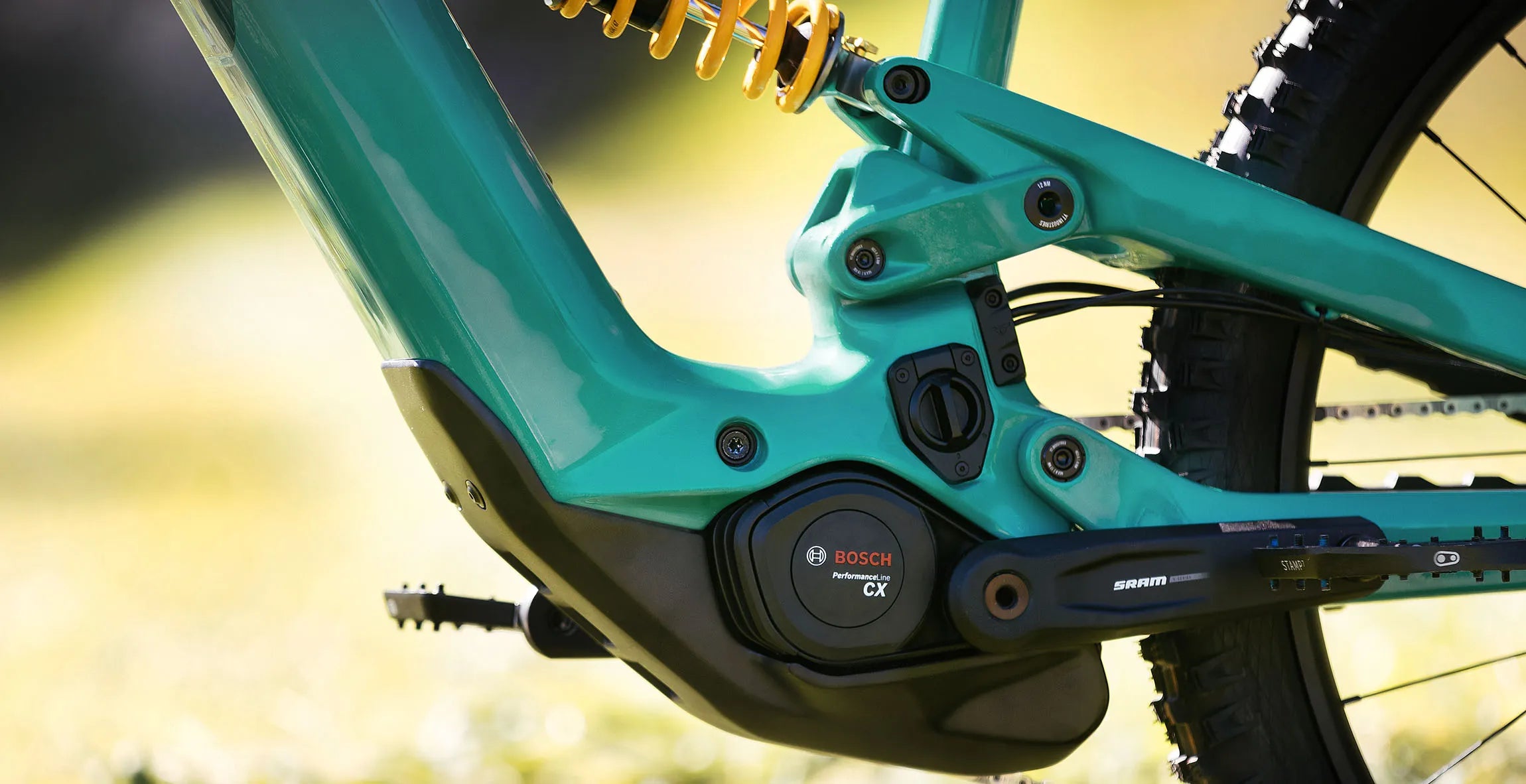

Drive Unit BOSCH PERFORMANCE LINE CX 100Nm | 750W Peak Power
Battery BOSCH POWERTUBE 800 Integrated | 800Wh | 36V | 4A Charger
Controller BOSCH KIOX 400C USB-C | ANT+ Bluetooth | Flow APP | Navigation

Components

Headset ACROS AZA-1370S / 1113S-BL ZS56 ZS56 | Stainless Steel Bearings | Block Lock 150° (Size S only) | Custom High Cap | 2 Spacer 5mm
Stem TITLE ST1 35 40 mm | +/-0° | Black
Handlebar TITLE AH1 35 Width 800mm | Rise 38mm | 8° Back Sweep | 5° Up Sweep | Black
Grips ODI ELITE MOTION V2.1 Lock On

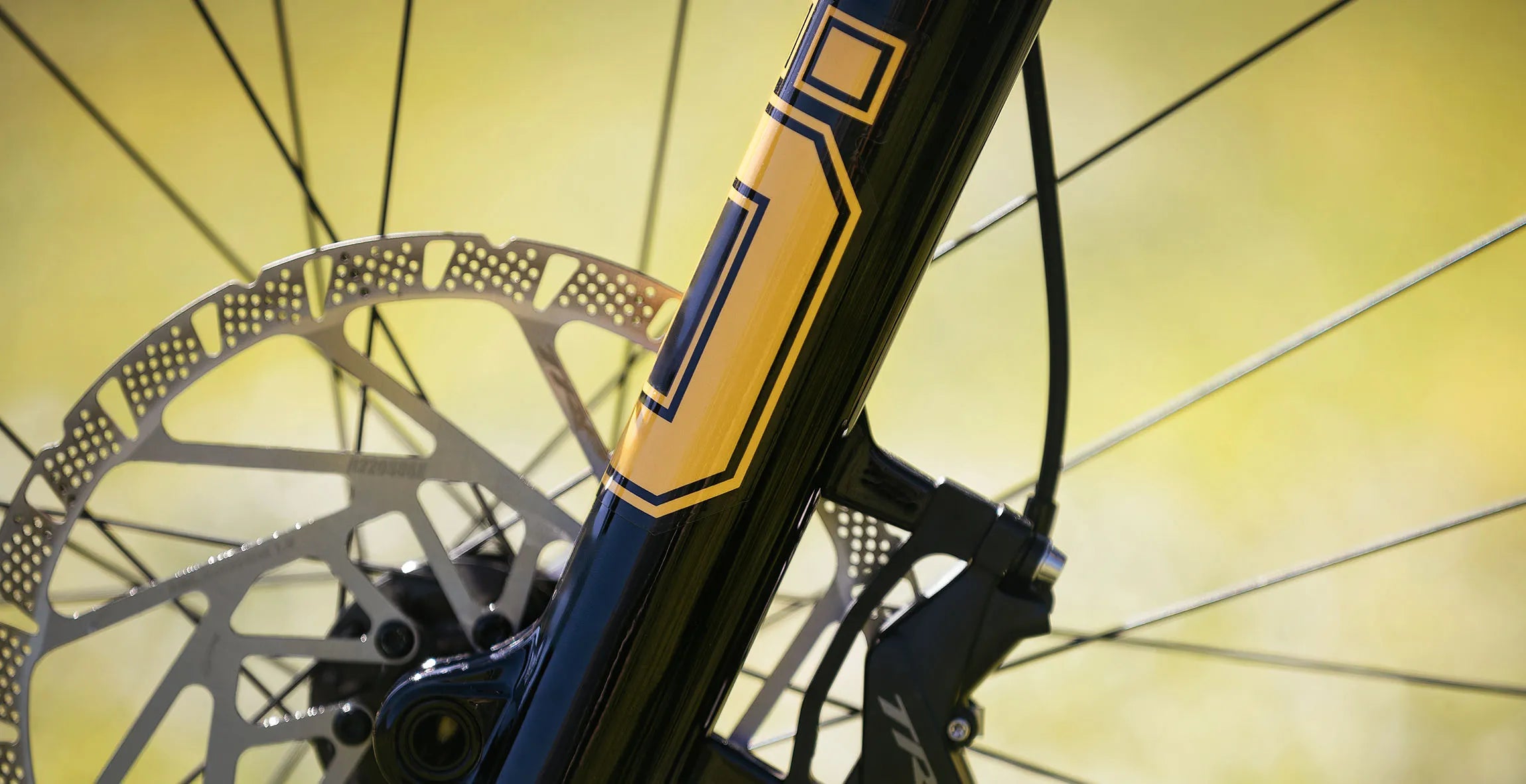

Brakes TRP EVO PRO Rotor 220 / 203 mm | 2.3 mm
Seatpost YT POSTMAN V2 Ø 34.9mm | SRAM MMX-Remote | Adjustable drop 20/10/5mm | 150 mm (S) | 170 mm (M) | 200 mm (L - XL) | 230 mm (XXL)
Saddle SDG BEL AIR V3 YT Custom | Width 140 mm | Lux-Alloy Rail
Chainguide MRP SL Custom SL Slider | Bosch BDU38 | 34 - 36T

Weight

Weight 23.20 KG / 54.15 LB Average weight for the smallest size available, set up tubeless, with no pedals or bottle.
